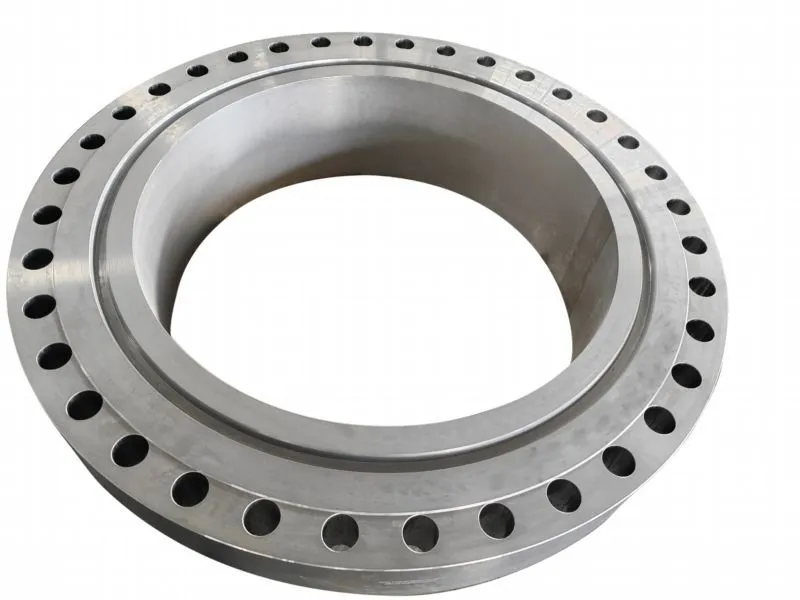

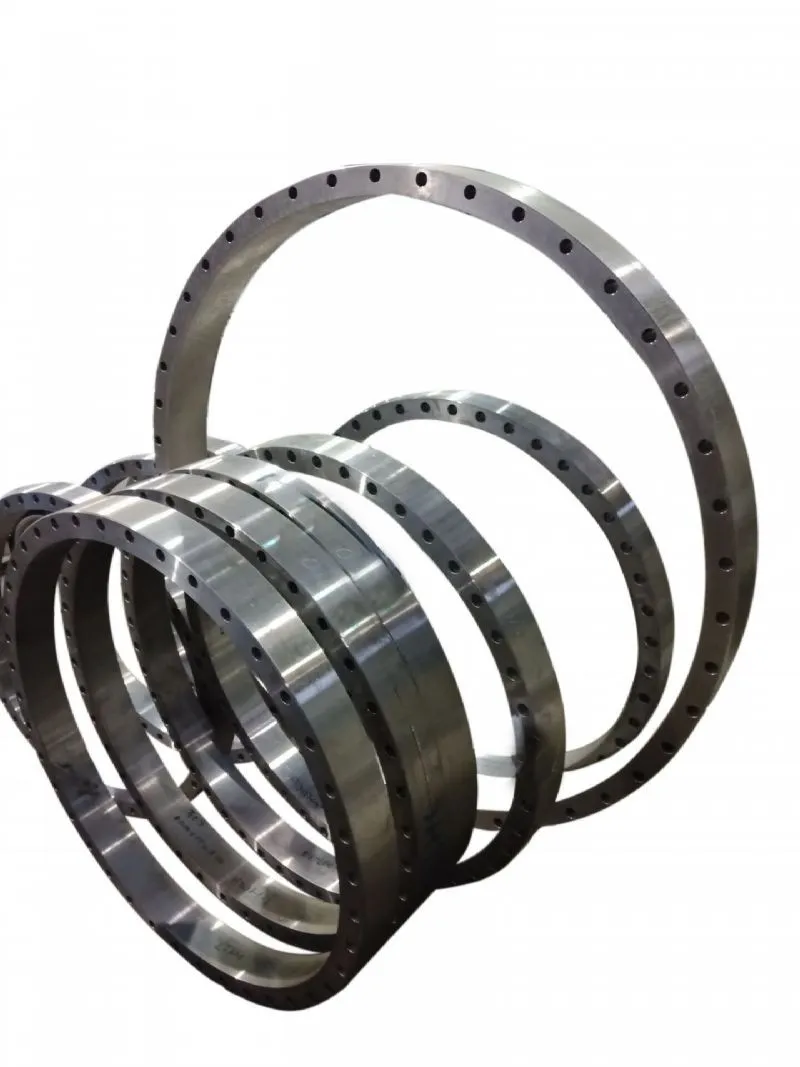

Shanxi Xinshunda Flange Manufacturing Co., Ltd. is a leading global supplier of ANSI B16.47 Class 300 Flanges, engineered specifically for large-diameter piping systems (NPS 26" to NPS 60") that operate under significant pressure. While Class 150 serves low-pressure needs, the ANSI B16.47 Class 300 Flange is the industry workhorse for applications requiring pressure containment up to approximately 720 psi (at ambient temperature for Carbon Steel) in massive pipe sizes. These components are vital for high-pressure gas transmission, refinery process lines, and large-scale petrochemical units where both diameter and pressure exceed the limits of ASME B16.5. With nearly two decades of heavy fabrication expertise, we deliver these massive, high-integrity flanges to energy and infrastructure projects worldwide.
Navigating the B16.47 Standard: Series A vs. Series B
Just like Class 150, the ANSI B16.47 Class 300 Flange is divided into two distinct series, each with unique dimensional characteristics. Selecting the correct series is critical for project compatibility:

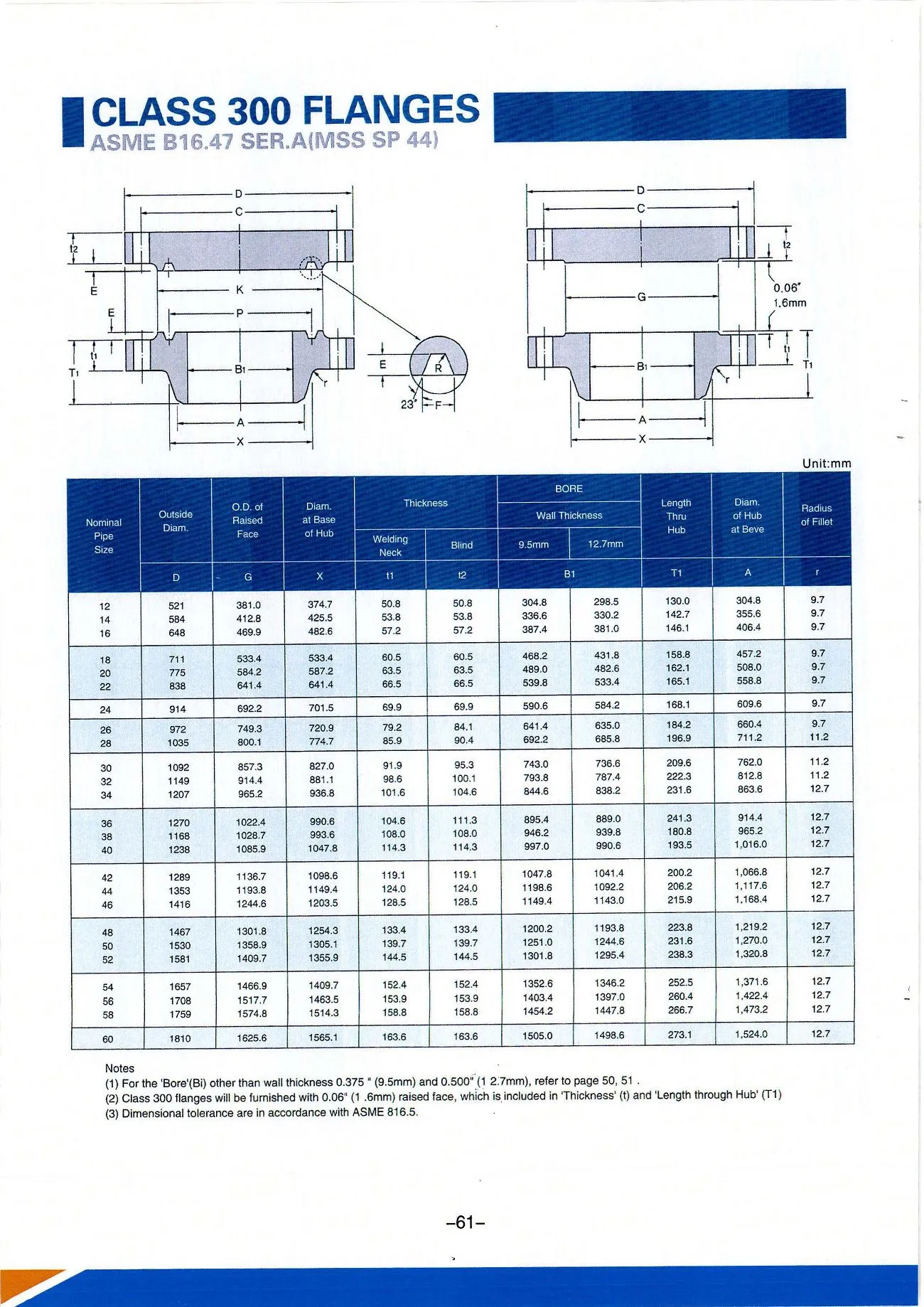

- Series A (Formerly MSS SP-44): Designed with a heavier hub, larger bolt circle, and a higher number of bolts compared to Series B. Series A Class 300 Flanges offer superior rigidity and are often specified for offshore platforms, high-stress piping racks, and applications where maximum structural integrity is paramount. They typically require larger diameter bolts to achieve the necessary clamp load.

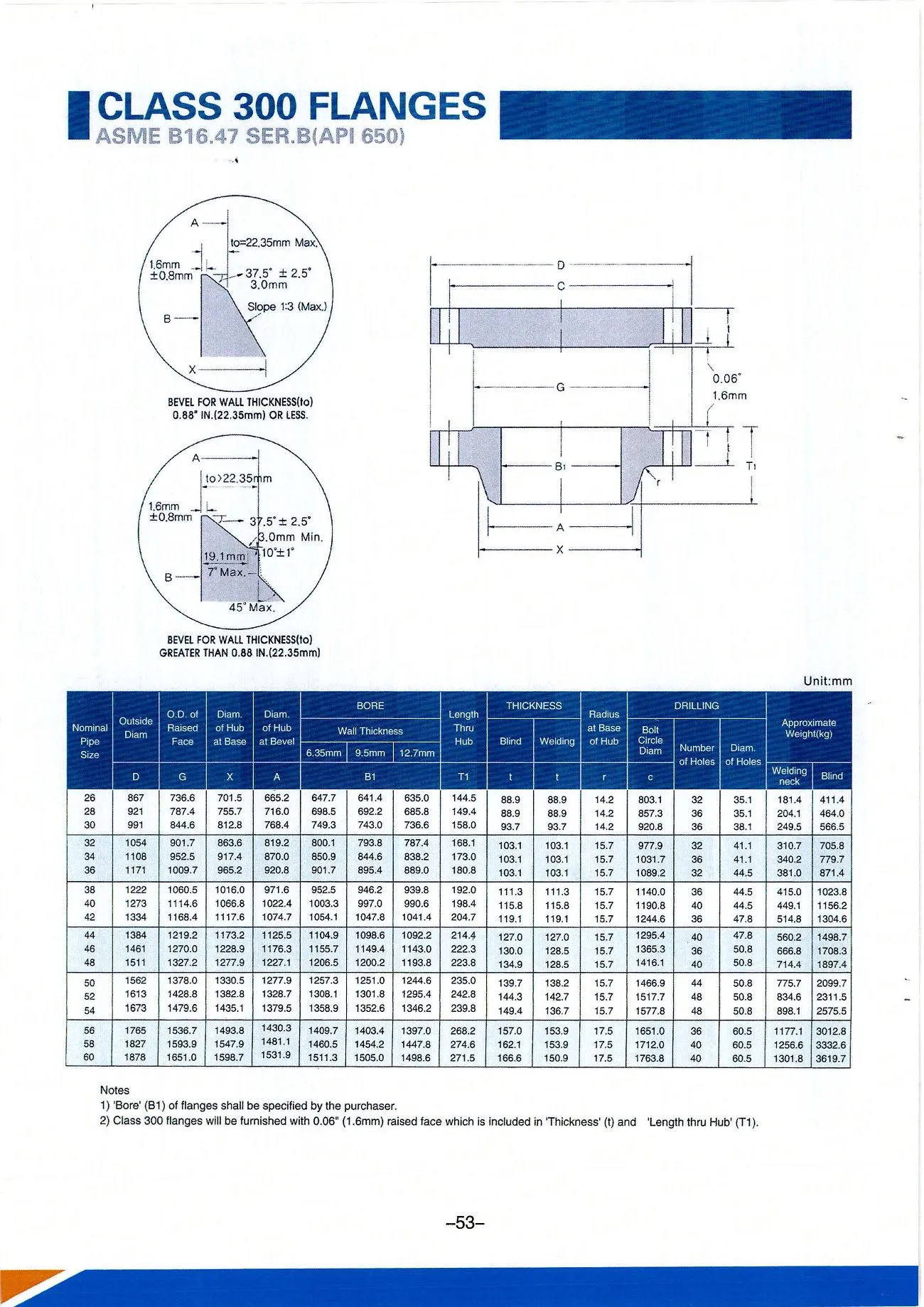

- Series B (Formerly API 605): Features a lighter hub design, smaller bolt circle, and fewer bolts. Series B Class 300 Flanges are widely adopted in the onshore oil and gas transmission industry due to their cost-effectiveness and lighter weight, which simplifies handling and installation in remote pipeline locations.
- Crucial Compatibility Note: Series A and Series B Class 300 Flanges are not interchangeable. Their bolt hole counts and bolt circle diameters differ significantly. Our engineering team provides detailed dimensional cross-references to ensure you order the exact series required to match your existing valves, fittings, or project specifications (e.g., Shell, Exxon, or specific EPC standards).
Advanced Engineering for Large-Bore High Pressure
Manufacturing a Class 300 Flange in sizes up to 60 inches involves overcoming significant metallurgical and machining challenges:

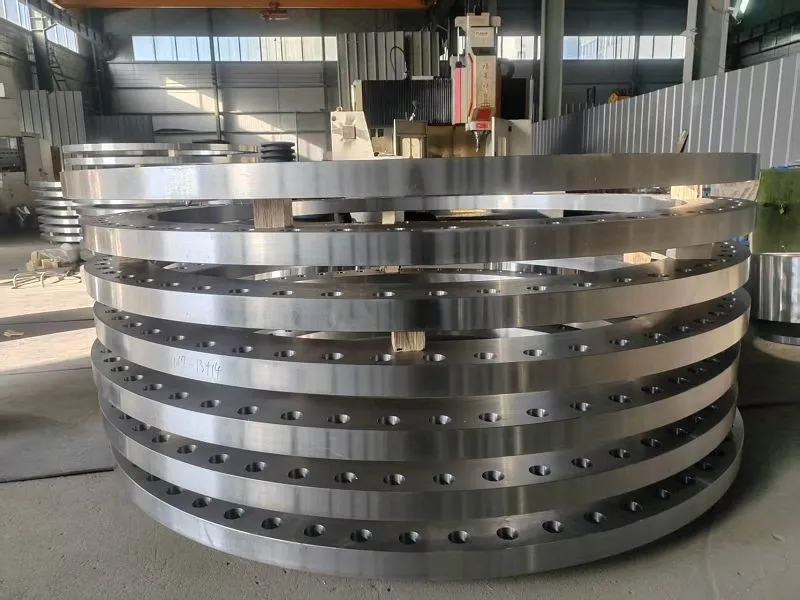

- Massive Structural Integrity: At Class 300 pressure ratings, the hub thickness and rim mass of an NPS 48" or 60" flange are substantial. We utilize advanced forging techniques for sizes up to NPS 36" and precision plate-cutting/forming methods for larger diameters, ensuring grain flow continuity and eliminating weak points.
- Material Selection: We supply ANSI B16.47 Class 300 Flanges in a wide range of materials including Carbon Steel (A105, A350 LF2/LF3 for low temp), Stainless Steel (A182 F304/F316/F316L), Duplex/Super Duplex (F51/F53/F55), and Alloy Steels (F11, F22). For sour service environments, all materials are strictly compliant with NACE MR0175/MR0103.
- Sealing Configurations:
- Raised Face (RF): The standard configuration for most process applications, compatible with spiral wound gaskets.

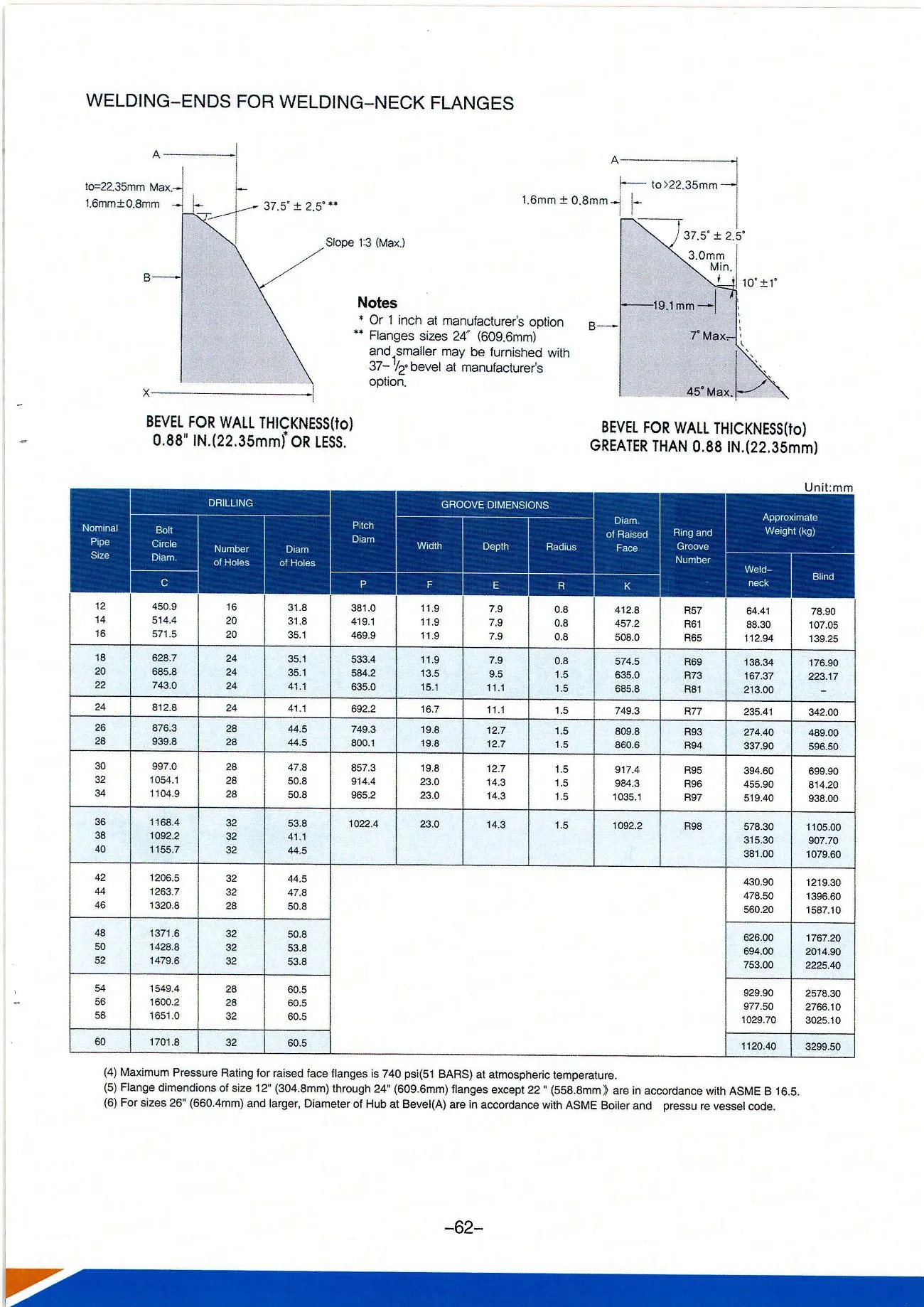

- Ring Type Joint (RTJ): Frequently specified for Class 300 large-bore gas lines and hazardous fluid services. We machine precise R-series (and occasionally RX/BX for specific high-integrity needs) grooves to ensure metal-to-metal sealing capability under high cyclic loads.
- Flat Face (FF): Available for connections to cast iron equipment or specific low-stress applications, though less common at Class 300 than Class 150.
- Precision Bolt Hole Drilling: Ensuring the alignment of 40+ bolt holes on a 60-inch flange requires CNC drilling centers with rotary tables. We guarantee angular accuracy to within fractions of a degree, preventing "bolt binding" during field assembly.
Strategic Applications in Heavy Industry
The ANSI B16.47 Class 300 Flange is indispensable in sectors moving large volumes of fluid under pressure:
- Natural Gas Transmission: Used in mainline pipelines (NPS 30"–48") operating at pressures between 600–1,000 psi. Series B is particularly dominant in cross-country gas grids.
- Refinery Process Lines: Essential for crude unit overheads, FCCU lines, and hydrocracker feed/effluent lines where large diameters are needed to handle high vapor or liquid loads at moderate pressures.
- Petrochemical Plants: Deployed in ethylene cracker furnaces, large compressor suction/discharge lines, and polymerization reactor feed lines.
- Power Generation: Utilized in high-pressure steam extraction lines, large feedwater heaters, and circulating water systems requiring higher pressure ratings than Class 150 can provide.
- Offshore Production: Series A Class 300 Flanges are standard on floating production storage and offloading (FPSO) vessels and fixed platforms for process manifolds and export lines.
Rigorous Quality Assurance for Massive Components
The sheer size of ANSI B16.47 Class 300 Flanges demands specialized QA protocols to ensure safety:
- Comprehensive NDT: All welds (for plate-built flanges) undergo 100% Radiographic (RT) or Ultrasonic Testing (UT). Forgings are tested per ASTM A388. All machined surfaces undergo Magnetic Particle (MT) or Liquid Penetrant (PT) inspection to detect surface cracks.
- Dimensional Accuracy: We employ laser trackers and large-arm CMMs to verify flange face flatness, bore concentricity, and bolt hole patterns across diameters exceeding 1.5 meters.
- Mechanical Testing: Full heat treatment verification, tensile testing, and Charpy V-Notch impact testing (especially for low-temperature service) are conducted on every heat lot.
- Traceability: Every Class 300 Flange is supplied with EN 10204 3.1/3.2 Mill Test Certificates, providing full traceability from raw material melt to final machining.
Specialized Logistics and Heavy-Lift Handling
Shipping ANSI B16.47 Class 300 Flanges presents unique logistical challenges due to their extreme weight (an NPS 60" Class 300 Series A flange can weigh over 2,500 lbs / 1,100 kg):
- Reinforced Packaging: Flange faces are protected with bolted steel or heavy timber covers. RTJ grooves are fitted with plastic protectors. Units are coated with heavy-duty anti-corrosion compounds and wrapped in VCI paper.
- Lifting-Ready Crates: We fabricate custom steel-skidded crates or open-top heavy-duty wooden boxes designed for direct lifting by site cranes. Clear center-of-gravity markings and lifting lug diagrams are provided.
- Break-Bulk & OOG Shipping: Our logistics team specializes in Out-of-Gauge (OOG) cargo, managing break-bulk vessel bookings, flat-rack container loading, and permit acquisition for oversized road transport to remote job sites.
Partner with Shanxi Xinshunda for Large-Diameter High-Pressure Needs
Choosing Shanxi Xinshunda for your ANSI B16.47 Class 300 Flange requirements ensures you receive components built to withstand the rigors of high-pressure, large-volume service. Whether your project mandates the robustness of Series A or the efficiency of Series B, in Carbon Steel or exotic alloys, we have the capacity and expertise to deliver. With 19 years of experience serving the global energy sector, our Class 300 Large-Diameter Flanges represent the perfect balance of strength, precision, and value. Contact our large-bore division today for technical data sheets, series comparison guides, and competitive pricing.
