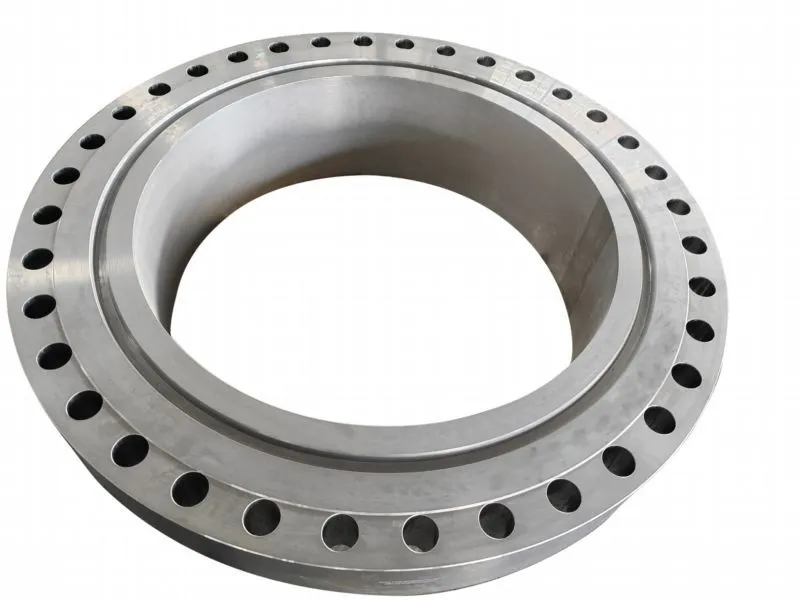

Shanxi Xinshunda Flange Manufacturing Co., Ltd. is a premier manufacturer of ANSI B16.47 Class 150 Flanges, the definitive standard for large-diameter piping systems (NPS 26" to NPS 60") operating at low to moderate pressures. While ASME B16.5 covers flanges up to 24 inches, the ANSI B16.47 Class 150 Flange is the critical engineering solution for mainline transmission pipelines, water treatment facilities, large-scale HVAC systems, and refinery off-gas lines where diameter exceeds 24 inches but pressure requirements remain within the 150-pound rating (approx. 285 psi at ambient temperature for Carbon Steel). With nearly 20 years of experience in large-scale forging and plate fabrication, we deliver these massive components with the precision and reliability required for global infrastructure projects.
Understanding the B16.47 Standard: Series A vs. Series B
A unique feature of the ANSI B16.47 Class 150 Flange is its division into two distinct series, originating from different historical standards. Shanxi Xinshunda manufactures both to ensure compatibility with existing global infrastructure:

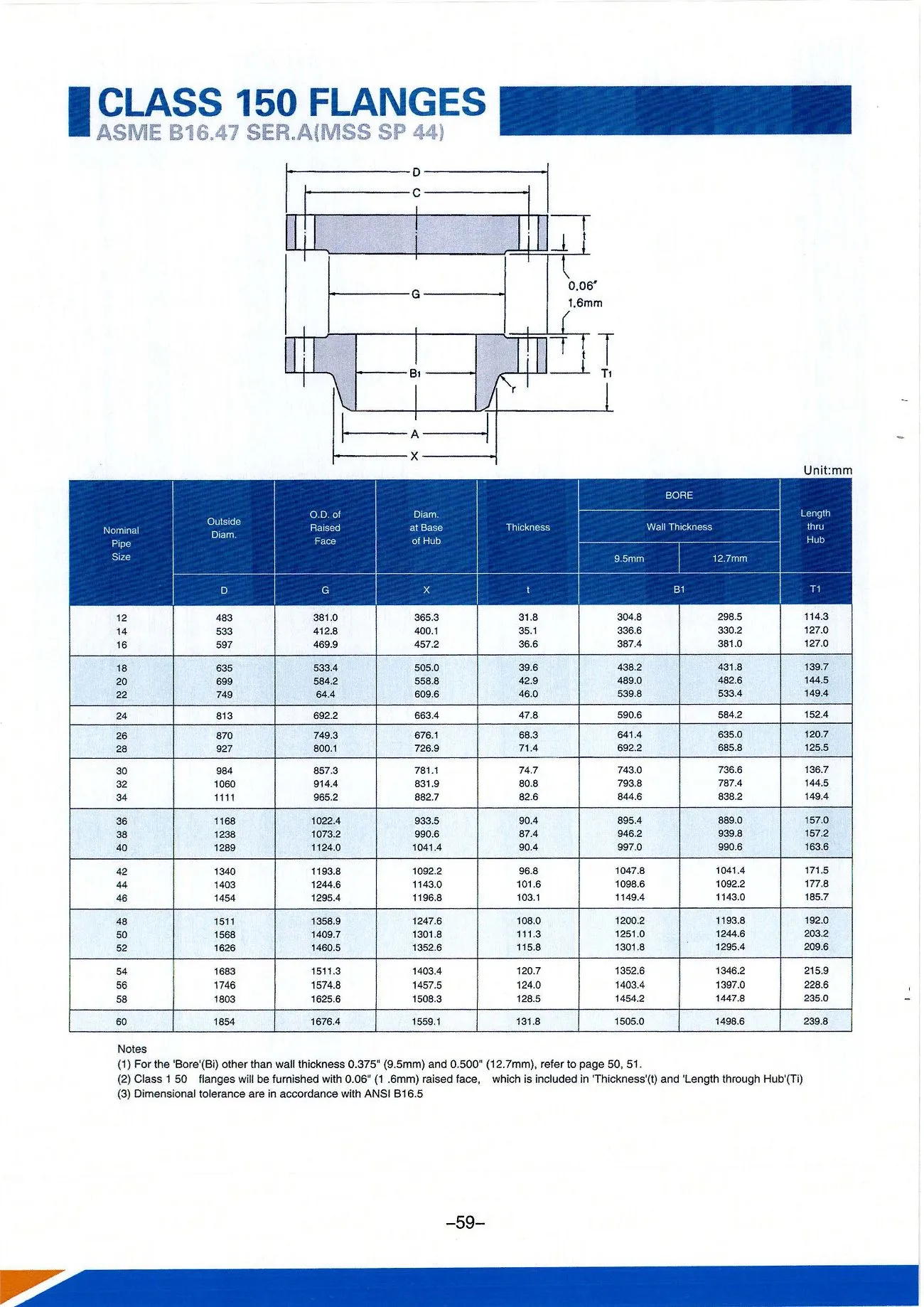

- Series A (Formerly MSS SP-44): Characterized by a larger bolt circle diameter, more bolts, and generally thicker hubs. Series A Class 150 Flanges are often preferred for high-stress applications, offshore platforms, and situations requiring maximum rigidity. They typically use larger diameter bolts compared to Series B for the same nominal size.

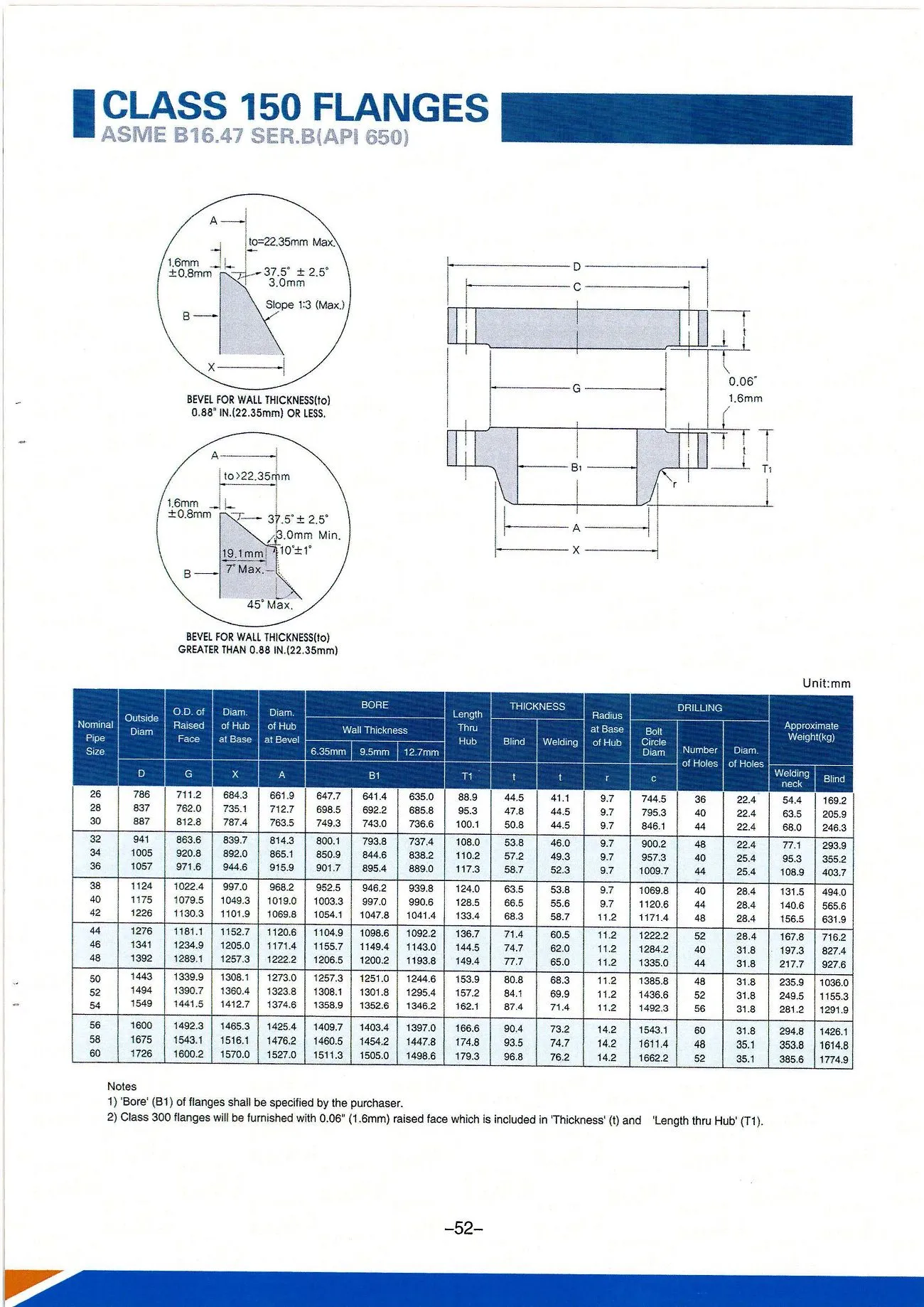

- Series B (Formerly API 605): Features a slightly smaller bolt circle, fewer bolts, and a lighter hub design. Series B Class 150 Flanges are widely used in the oil and gas transmission industry and are often considered more cost-effective for standard onshore pipeline applications due to reduced material weight and fewer bolting requirements.
- Interchangeability Warning: While both are "Class 150," Series A and Series B ANSI B16.47 Flanges are not directly bolt-to-bolt compatible due to differences in bolt hole count and circle diameter. Our engineering team assists clients in specifying the correct series to match their existing pipeline infrastructure or project design specifications.
Robust Design and Manufacturing Capabilities
Manufacturing ANSI B16.47 Class 150 Flanges in sizes up to 60 inches requires specialized facilities and processes that go beyond standard flange production:
- Material Versatility: We produce these large-diameter flanges in Carbon Steel (A105, A350 LF2), Stainless Steel (A182 F304/F316), Duplex/Super Duplex, and specialized alloys. For very large sizes (NPS 48"+), we utilize high-grade steel plates cut and formed to ASME specifications, ensuring structural integrity without the limitations of forging die sizes.
- Facing Options: Standard supply includes Raised Face (RF) for general service. However, for large-diameter water, sewage, or low-pressure gas applications, we frequently manufacture ANSI B16.47 Class 150 Flanges with Flat Face (FF) configurations to prevent bending moments on cast iron or fiberglass valves and equipment. Ring Type Joint (RTJ) is also available for specific large-bore high-integrity gas services.

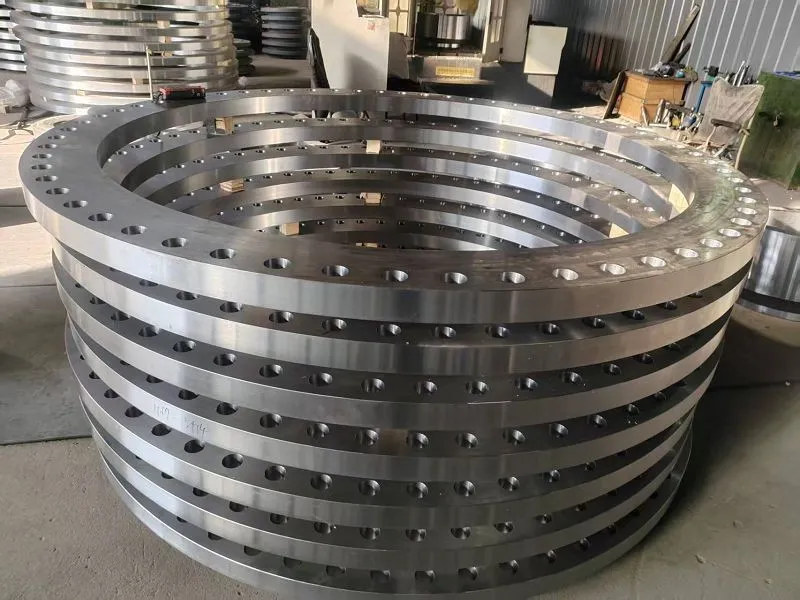

- Precision Machining of Massive Components: Our facility houses large-vertical boring mills capable of machining flange faces, bores, and bolt holes for diameters exceeding 1.5 meters. We ensure perfect flatness of the gasket seating surface and precise angular spacing of bolt holes, which is critical for achieving a leak-tight seal on such large circumferences.
- Weight Optimization: Despite the "Class 150" low-pressure rating, the sheer size of these flanges results in significant weight. Our engineers optimize hub thickness and rim design to meet code requirements while minimizing unnecessary mass, reducing shipping costs and installation handling difficulties.
Critical Applications in Infrastructure and Energy
The ANSI B16.47 Class 150 Flange is the backbone of large-volume fluid transport systems:
- Oil & Gas Transmission: Used extensively in crude oil and natural gas trunk lines (NPS 30"–48") where operating pressures are moderate but flow volumes are massive. Series B is particularly common in cross-country pipelines.
- Water & Wastewater Treatment: Essential for intake lines, discharge headers, and sludge transport systems in municipal water plants. Flat Face Class 150 Flanges are standard here to protect brittle valve bodies.
- Power Generation: Deployed in circulating water systems, condenser cooling lines, and flue gas desulfurization (FGD) ducting where large diameters are required to move vast quantities of water or gas at low pressure.
- Refinery & Petrochemical: Used in large off-gas lines, flare headers, and tank farm manifolds where low-pressure, high-volume vapor or liquid transport is needed.
- Marine & Offshore: Utilized in ballast water systems, firewater rings, and large-diameter seawater cooling lines on ships and offshore platforms.
Rigorous Quality Assurance for Large-Scale Components
Ensuring the quality of an ANSI B16.47 Class 150 Flange presents unique challenges due to the component's size. Shanxi Xinshunda employs specialized QA protocols:
- Dimensional Verification: We use laser tracking and large-coordinate measuring arms to verify bolt hole patterns, flange face flatness, and bore concentricity across diameters up to 60 inches. Even minor deviations in bolt hole spacing can prevent assembly in the field.
- Non-Destructive Testing (NDT): All welds (for plate-built flanges) undergo 100% Radiographic (RT) or Ultrasonic Testing (UT). Machined surfaces are inspected via Magnetic Particle (MT) or Liquid Penetrant (PT) to detect surface cracks.
- Material Certification: Full EN 10204 3.1/3.2 Mill Test Certificates are provided, ensuring chemical and mechanical properties meet ASTM specifications across the entire cross-section of the large plate or forging.
- Hydrostatic Testing: While full-body hydro-testing of NPS 60" flanges is logistically complex, we perform rigorous shell testing on sample batches and ensure all welds and machined areas meet strict integrity standards per ASME B16.47 requirements.
Specialized Logistics and Heavy-Lift Packaging
Transporting ANSI B16.47 Class 150 Flanges requires careful planning due to their oversized dimensions and weight (a single NPS 48" Class 150 flange can weigh over 1,000 lbs).
- Protective Packaging: Flange faces are protected with heavy-duty wooden or steel covers bolted directly to the flange to prevent damage during transit. Bolt holes are plugged, and units are coated with long-term corrosion inhibitors.
- Crane-Ready Crating: Units are secured in reinforced, open-top or heavy-duty wooden crates designed for direct lifting by site cranes. We provide detailed lifting diagrams and center-of-gravity markings to ensure safe handling.
- Global Shipping Expertise: We manage the logistics of out-of-gauge (OOG) cargo, ensuring proper containerization or break-bulk shipping arrangements for international projects. Documentation, including dimensional drawings and weight certificates, is prepared to facilitate smooth customs clearance and site receipt.
Partner with Shanxi Xinshunda for Large-Diameter Solutions
Selecting Shanxi Xinshunda for your ANSI B16.47 Class 150 Flange needs guarantees access to a manufacturer with the physical capacity and technical expertise to handle the largest piping components. Whether you require Series A for maximum strength or Series B for pipeline efficiency, in Carbon Steel or exotic alloys, we deliver precision-machined, code-compliant flanges ready for immediate installation. With 19 years of experience powering global infrastructure, our Class 150 Large-Diameter Flanges offer the reliability and value your project demands. Contact our large-bore specialist team today for catalogs, dimensional data, and competitive quotes.
