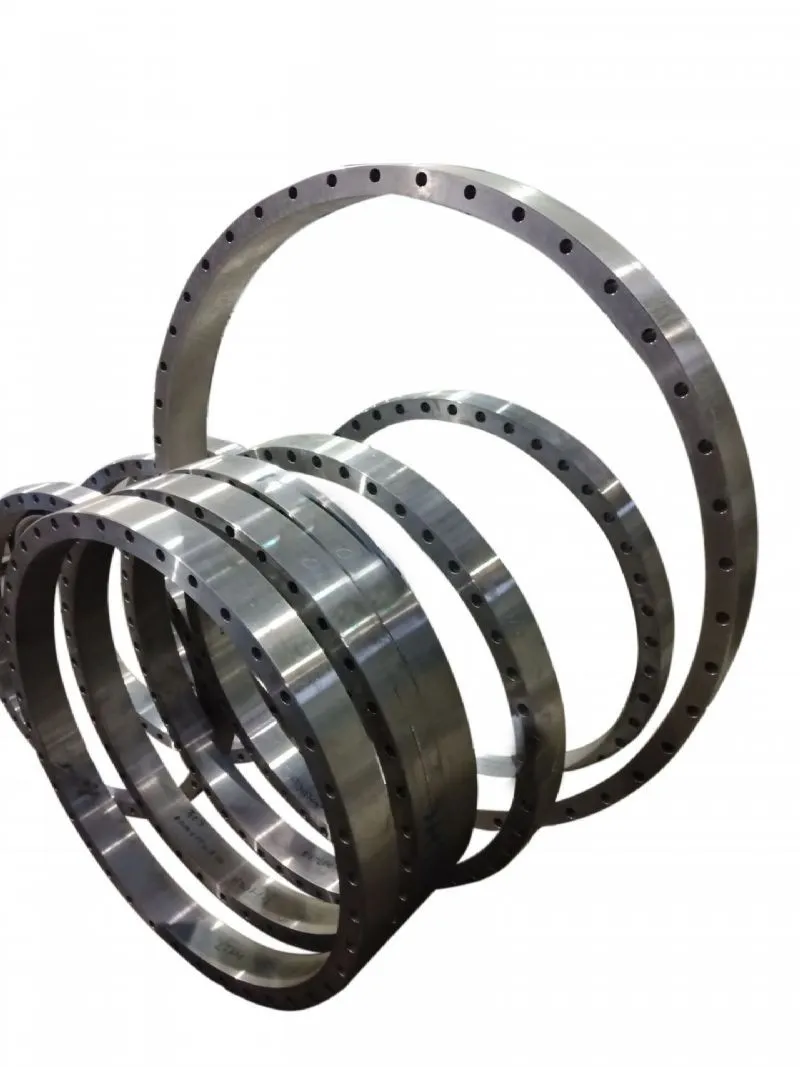

Shanxi Xinshunda Flange Manufacturing Co., Ltd. offers specialized engineering and manufacturing services for ANSI B16.47 Class 400 Flanges, a unique and less common pressure rating designed for large-diameter piping systems (NPS 26" to NPS 60") operating at pressures exceeding the standard Class 300 limits but where a full jump to Class 600 may be cost-prohibitive or dimensionally unnecessary. While ASME B16.5 does not include a Class 400 rating, ANSI B16.47 Class 400 Flanges fill a critical niche in specific high-pressure gas transmission, deep-well injection, and specialized petrochemical applications requiring a working pressure of approximately 960 psi (at ambient temperature for Carbon Steel). With our advanced heavy-forging and plate-fabrication capabilities, we deliver these bespoke components with the precision required for non-standard, high-integrity projects.
Understanding the Unique Position of Class 400 in B16.47
The ANSI B16.47 Class 400 Flange is an outlier in the standard flange series, which typically progresses from 150, 300, 600, 900, to 1500/2500.
- Pressure Gap Bridging: Class 400 serves as a vital intermediate step, offering ~33% higher pressure capacity than Class 300 (~720 psi) without the massive weight and cost increase associated with Class 600 (~1,440 psi). This makes it an economical choice for pipelines operating in the 800–1,000 psi range.
- Dimensional Distinctiveness: Unlike lower classes where Series A and B differ mainly in bolt count, Class 400 Flanges feature significantly thicker hubs and larger bolt diameters compared to Class 300. The bolt circle diameters often align closer to Class 600 dimensions to accommodate the higher clamp loads, yet the overall profile remains lighter than a full Class 600 unit.
- Series A vs. Series B:
- Series A (MSS SP-44 lineage): Provides maximum structural rigidity for Class 400 service, often specified for offshore platforms, high-vibration compressor stations, and critical safety lines.

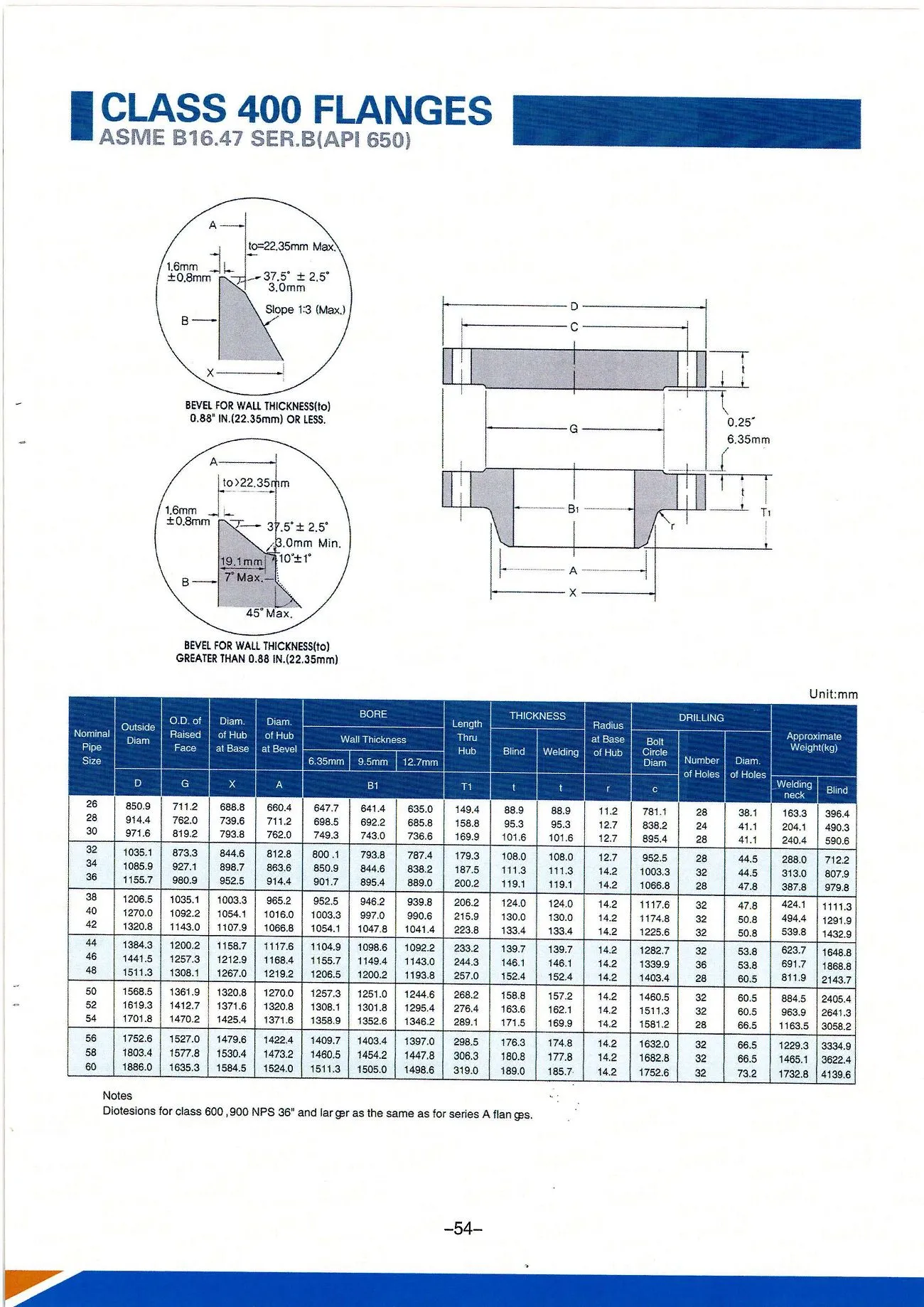

- Series B (API 605 lineage): Offers a optimized weight-to-strength ratio, preferred for long-distance onshore pipelines where minimizing tonnage reduces installation costs while still meeting the 960 psi requirement.
- Custom Engineering Required: Because Class 400 is not as universally stocked as 150/300/600, Shanxi Xinshunda treats these as engineered-to-order items, ensuring exact compliance with ASME B16.47 dimensional tables and client-specific material requirements.

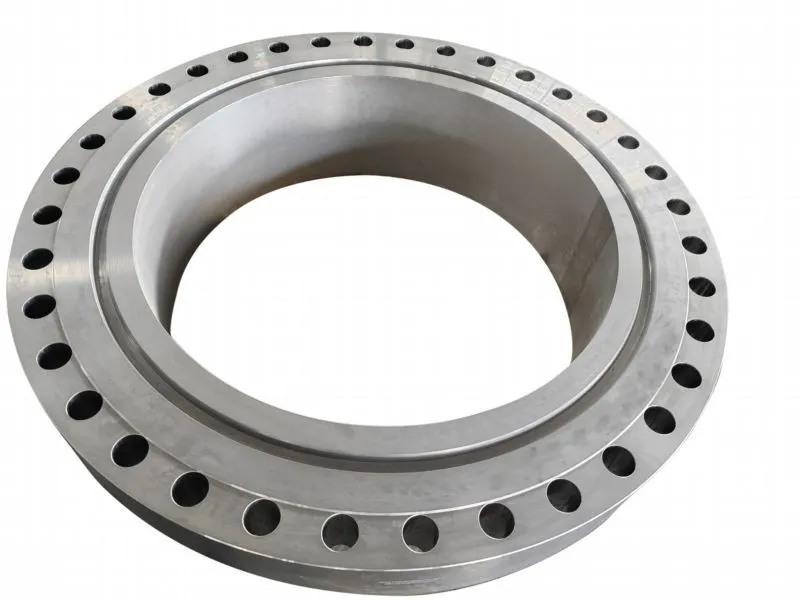

Advanced Manufacturing for Intermediate High Pressure
Producing ANSI B16.47 Class 400 Flanges demands precise control over material properties and machining tolerances to handle the elevated stress levels:
- High-Strength Material Grades: We manufacture these flanges in Carbon Steel (A105, A350 LF2), Low-Temp Carbon Steel, Stainless Steel (F304/F316/F316L), Duplex/Super Duplex (F51/F53/F55), and Alloy Steels (F11/F22). For sour service, all materials undergo strict NACE MR0175/MR0103 compliance testing.
- Heavy Hub Forging & Forming: To withstand 960+ psi in diameters up to 60 inches, the hub thickness is substantial. We use open-die forging for sizes up to NPS 36" and precision rolled/formed plate techniques for larger sizes, followed by normalizing or quench-and-tempering heat treatments to achieve optimal grain structure and impact resistance.
- Sealing Integrity:
- Raised Face (RF): Standard for most process applications, machined to serrated finishes (125–250 AARH) for spiral wound gaskets.

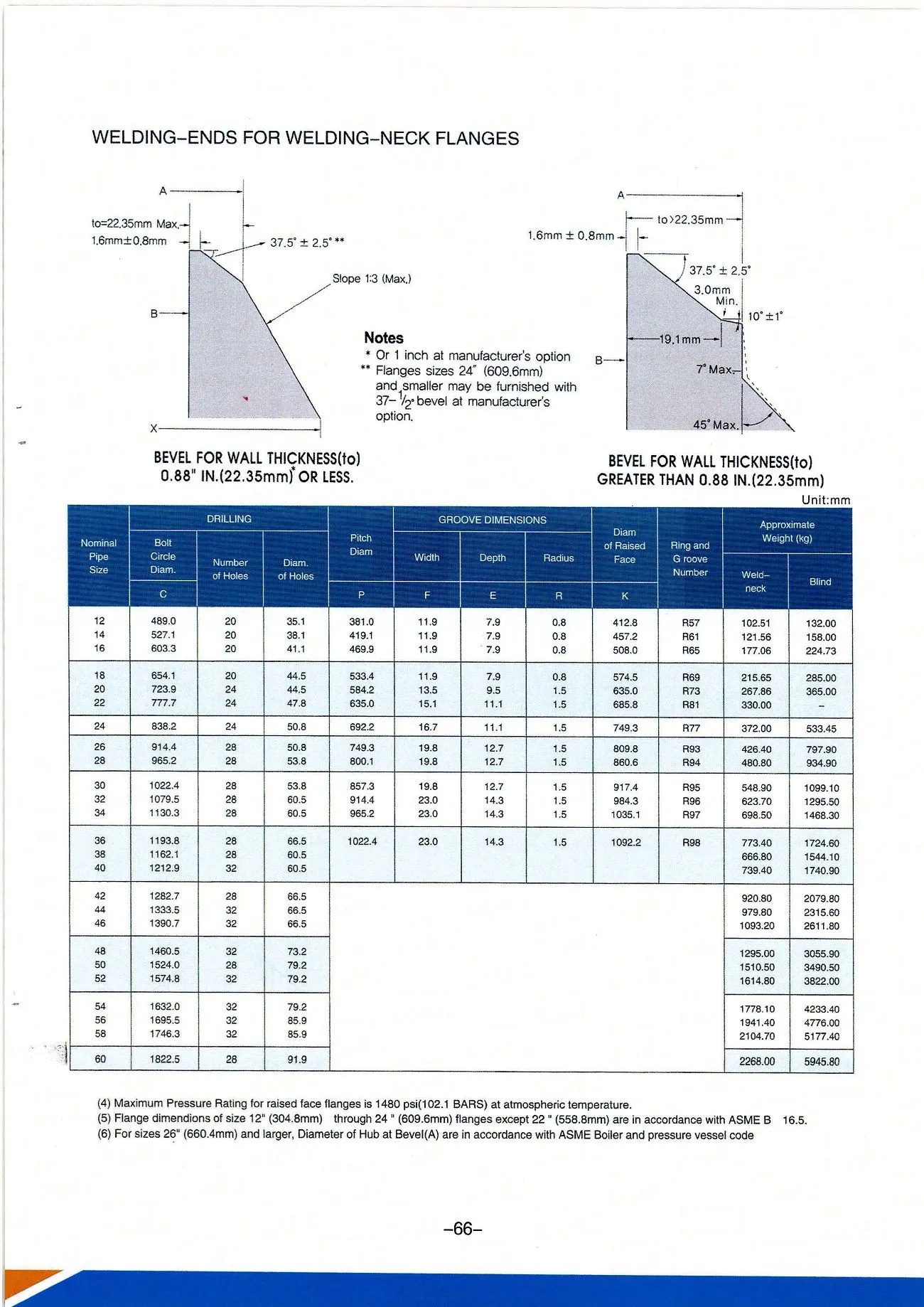

- Ring Type Joint (RTJ): Highly recommended for Class 400 gas and hazardous liquid services. We machine precise R-series grooves (and RX/BX where specified) to ensure leak-tight metal-to-metal seals under high cyclic loading.
- Precision Bolt Hole Layout: The high bolt loads in Class 400 require perfect hole alignment. Our CNC drilling centers ensure angular accuracy across massive bolt circles, preventing gasket crushing unevenness and ensuring uniform bolt stress distribution.
Strategic Applications for Class 400 Performance
The ANSI B16.47 Class 400 Flange is deployed in specialized sectors where operating pressures sit uniquely between standard ratings:
- High-Pressure Gas Transmission: Ideal for natural gas pipelines operating at 800–950 psi, common in certain regional transmission networks or specific compressor discharge lines where Class 300 is insufficient but Class 600 is over-engineered.
- CO2 Injection for EOR: Used in Carbon Capture and Storage (CCS) and Enhanced Oil Recovery projects where supercritical CO2 is injected at pressures often targeting the 900–1,000 psi range.
- Deep-Well Water Injection: Essential for high-pressure water flood injection lines in mature oil fields where reservoir pressures have been maintained at elevated levels.
- Specialized Petrochemical Processes: Deployed in specific reactor feed lines, high-pressure separator outlets, and hydrogen manifolds where process design dictates a 900+ psi operating window.
- Geothermal Brine Transport: Utilized in geothermal plants transporting high-pressure, high-temperature brine where corrosion-resistant alloys (like Duplex) in Class 400 ratings offer the best balance of strength and cost.
Rigorous Quality Assurance for Non-Standard Ratings
Because Class 400 is a specialized rating, our QA protocols are even more stringent to ensure custom engineering success:
- Full Dimensional Validation: Every Class 400 Flange is verified against ASME B16.47 tables using laser trackers and large-arm CMMs to confirm hub thickness, bolt circle diameter, and face flatness.
- Comprehensive NDT: 100% Ultrasonic Testing (UT) for internal integrity, plus Magnetic Particle (MT) and Liquid Penetrant (PT) for surface defects on all critical areas. Welds on plate-built flanges undergo 100% Radiographic (RT) inspection.
- Mechanical Property Verification: Extensive tensile, yield, elongation, and Charpy V-Notch impact testing is performed on each heat lot to verify performance at design temperatures.
- Traceability & Documentation: Full EN 10204 3.1/3.2 Mill Test Certificates are provided, detailing chemical composition, mechanical properties, heat treatment records, and NDT results. For critical projects, we can provide PSL-level documentation similar to API 6A standards.
Specialized Logistics for Heavy, Custom Components
Shipping ANSI B16.47 Class 400 Flanges requires careful handling due to their significant weight and custom nature:
- Protective Packaging: Flange faces are protected with bolted steel covers, RTJ grooves are capped, and units are coated with heavy-duty corrosion inhibitors.
- Engineered Crating: Custom steel-skidded or heavy-timber crates are designed for direct crane lifting, with clear center-of-gravity markings and lifting instructions included.
- Global Project Support: Our logistics team manages Out-of-Gauge (OOG) shipments, break-bulk vessel bookings, and customs documentation to ensure timely delivery to remote pipeline sites or offshore platforms.
Partner with Shanxi Xinshunda for Specialized High-Pressure Solutions
Selecting Shanxi Xinshunda for your ANSI B16.47 Class 400 Flange needs means partnering with a manufacturer capable of delivering rare, high-performance components with speed and precision. Whether you require Series A for maximum strength or Series B for pipeline efficiency, in standard carbon steel or exotic corrosion-resistant alloys, we engineer solutions that fit your exact pressure and budget requirements. With 19 years of experience in custom heavy fabrication, our Class 400 Large-Diameter Flanges provide the reliable, cost-effective bridge between standard pressure ratings for your most demanding projects. Contact our specialized engineering team today for dimensional drawings, material consultations, and competitive quotes.
