Shanxi Xinshunda Flange Manufacturing Co., Ltd. specializes in the engineering and fabrication of ANSI B16.47 Class 900 Flanges, the definitive solution for large-diameter piping systems (NPS 26" to NPS 60") operating under extreme pressure conditions. With a working pressure rating of approximately 2,160 psi (at ambient temperature for Carbon Steel), the Class 900 Flange represents the upper tier of standard large-bore piping components. These massive units are critical for high-pressure hydrocarbon processing, deep-well injection, supercritical steam lines, and high-integrity gas transmission where failure is not an option. Leveraging our heavy forging capabilities and advanced plate-forming technology, we deliver Class 900 components that meet the most rigorous global safety standards.
The B16.47 Class 900 Distinction: Series A vs. Series B
At the Class 900 pressure level, the structural differences between Series A and Series B become even more pronounced due to the immense forces involved:

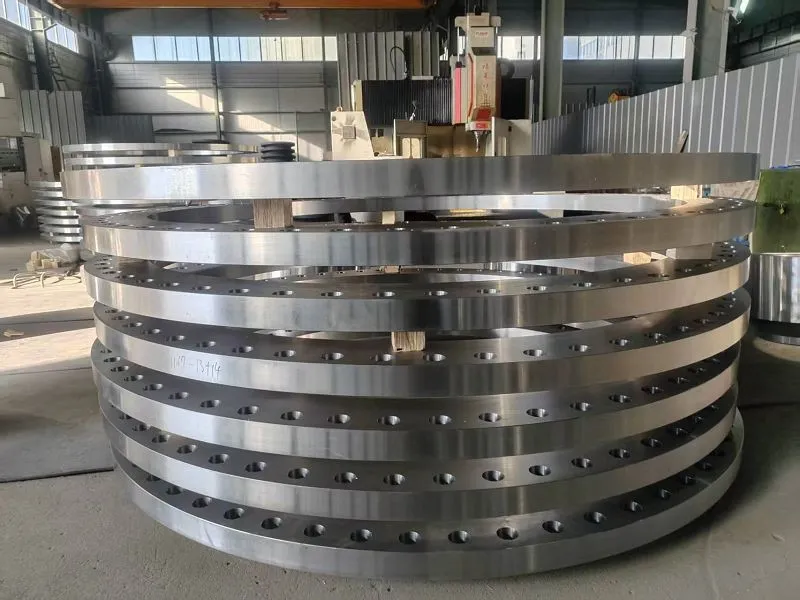

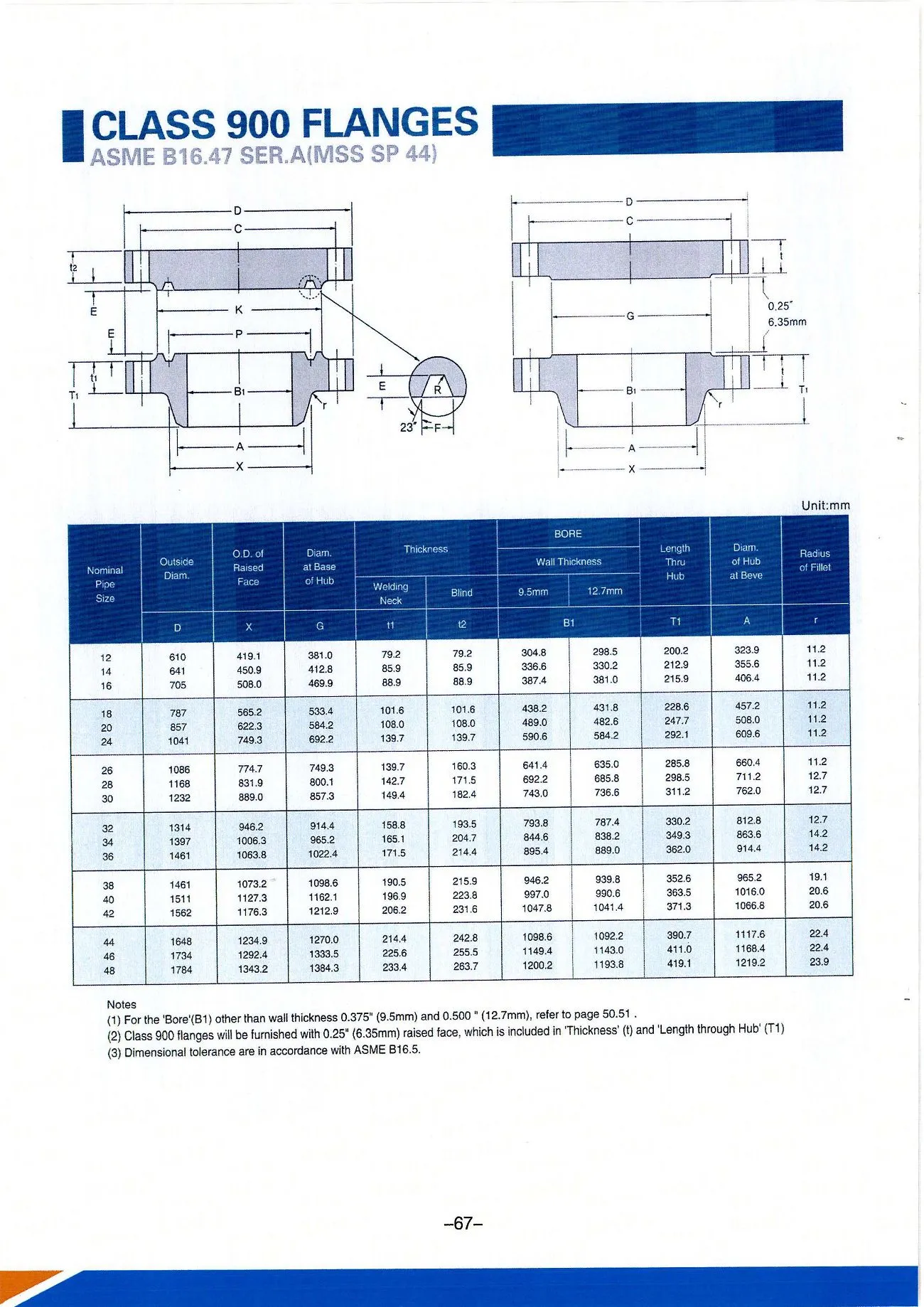

- Series A (Formerly MSS SP-44): The "Heavy Duty" choice. Series A Class 900 Flanges feature significantly thicker hubs, larger rim diameters, and a high count of large-diameter bolts. This series is engineered for maximum rigidity, making it the preferred specification for offshore platforms, subsea applications, high-vibration compressor stations, and critical refinery headers where structural deflection must be minimized.

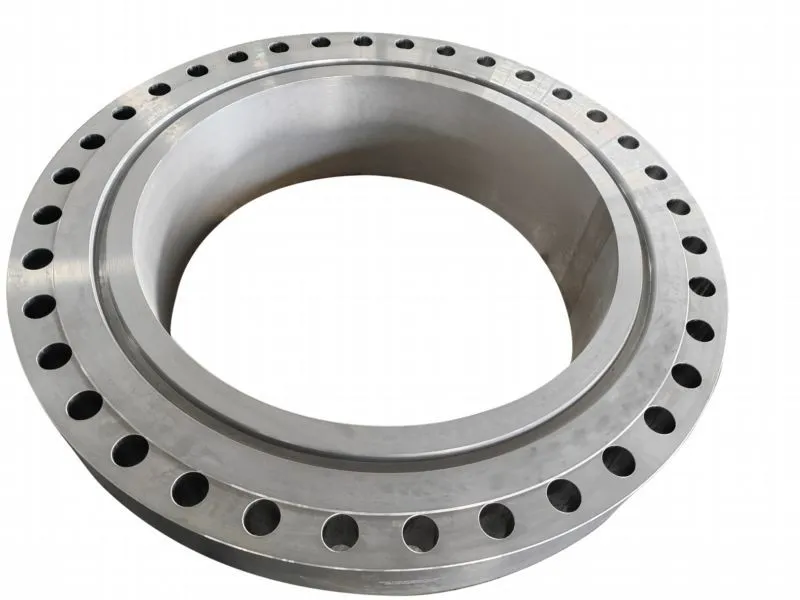

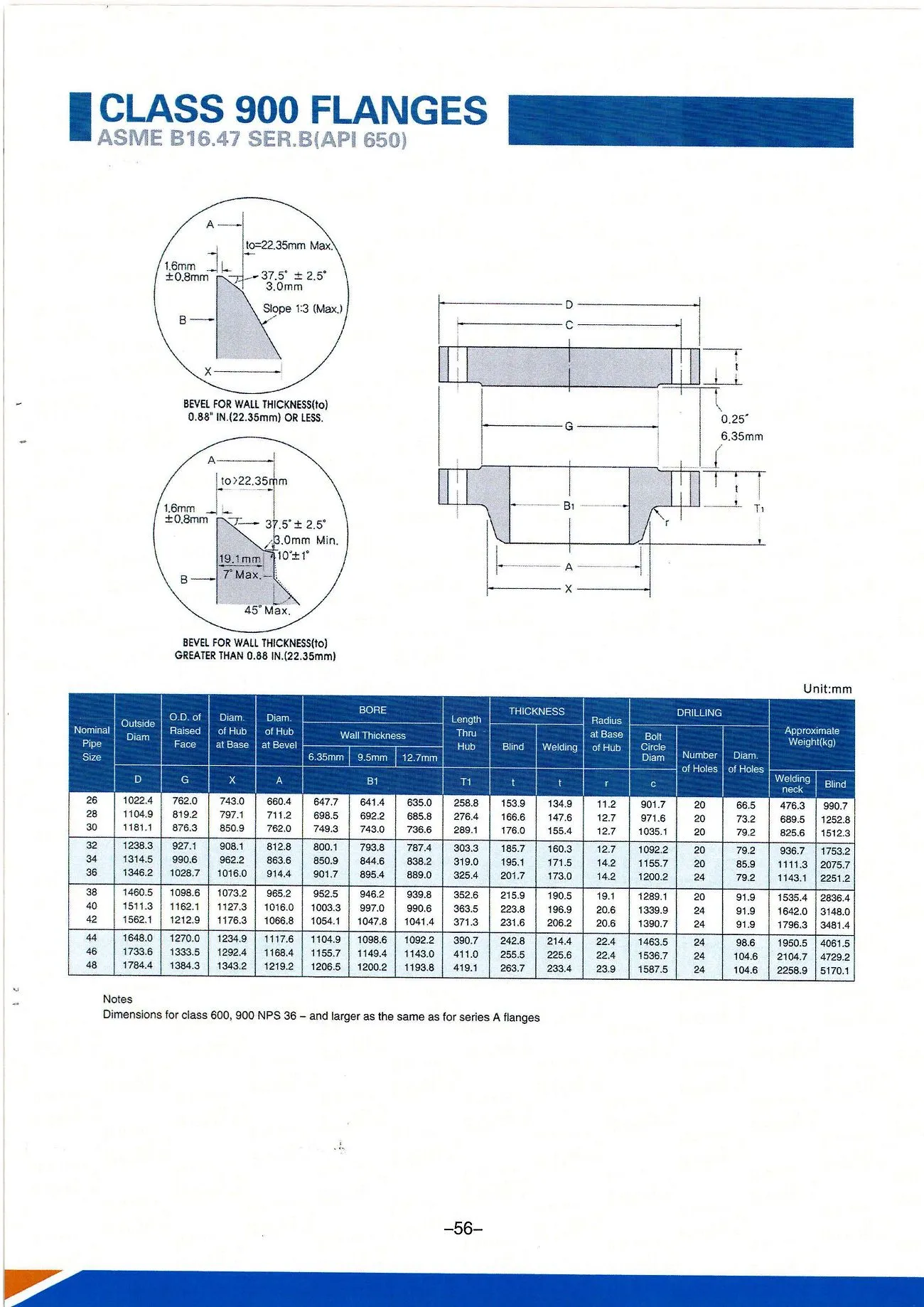

- Series B (Formerly API 605): The "Optimized" choice. While still capable of withstanding 2,160+ psi, Series B Class 900 Flanges utilize a more efficient design with a smaller bolt circle and fewer bolts compared to Series A. This results in a lighter component, reducing material costs and installation handling challenges for onshore pipeline projects where weight is a primary constraint.
- Strict Incompatibility: At this pressure class, the dimensional divergence between Series A and B is absolute. They are never interchangeable. Our team provides detailed bolt-up procedures and dimensional cross-checks to ensure perfect alignment with your specific valve and fitting inventory.
Advanced Manufacturing for Extreme Stress Containment
Producing a Class 900 Flange in sizes up to 60 inches pushes the limits of manufacturing technology. The wall thicknesses and hub masses are substantial, requiring specialized processes:
- Superior Metallurgy & Forging: For sizes up to NPS 36", we exclusively use open-die forging to ensure continuous grain flow around the bore and hub, providing superior impact resistance and fatigue strength. For NPS 40"–60", we utilize high-grade steel plates that are precision-cut, pre-heated, and formed using heavy rolling presses, followed by full circumferential welding and stress-relief heat treatment.
- Material Portfolio: We manufacture ANSI B16.47 Class 900 Flanges in:
- Carbon & Low-Temp Steel: A105, A350 LF2/LF3 (down to -46°C).
- Stainless Steels: F304/L, F316/L, F321, F347 for corrosive high-pressure services.
- Duplex/Super Duplex: F51, F53, F55, F57 for high-strength, chloride-resistant applications (e.g., seawater injection).
- Alloy Steels: F11, F22, F91 for high-temperature power plant steam services.
- Sour Service Compliance: All materials strictly adhere to NACE MR0175/MR0103 for H2S environments.
- Sealing Integrity at 2,000+ PSI:

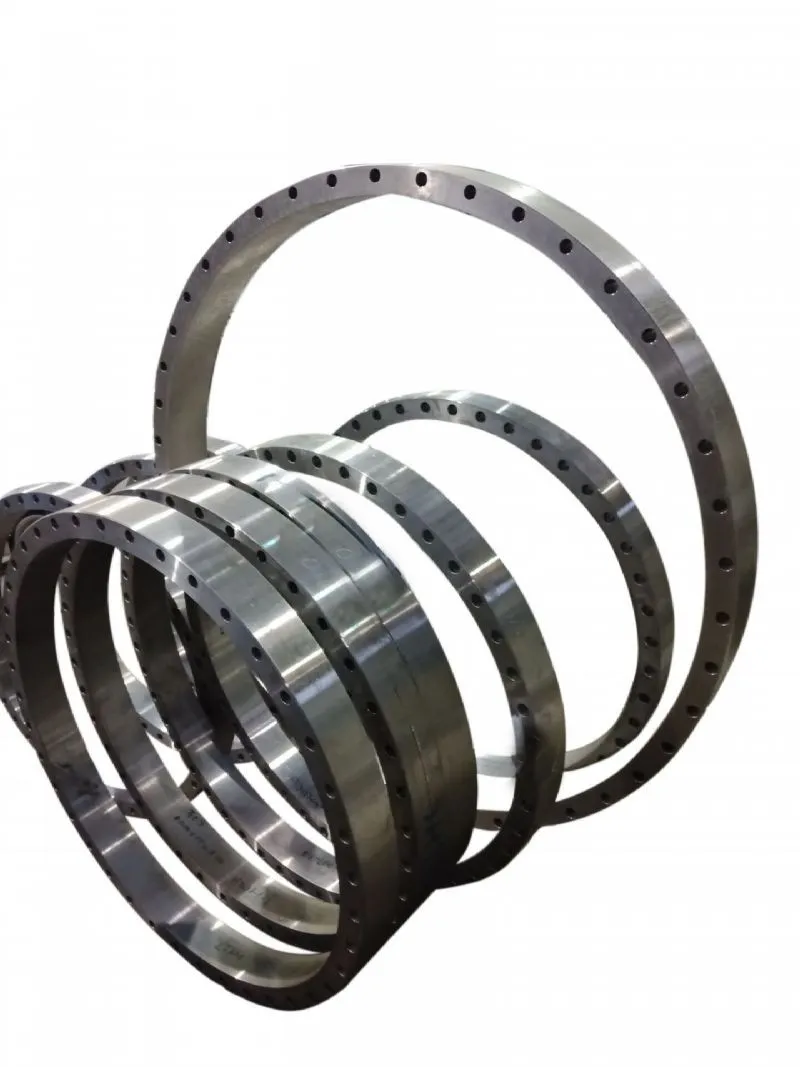

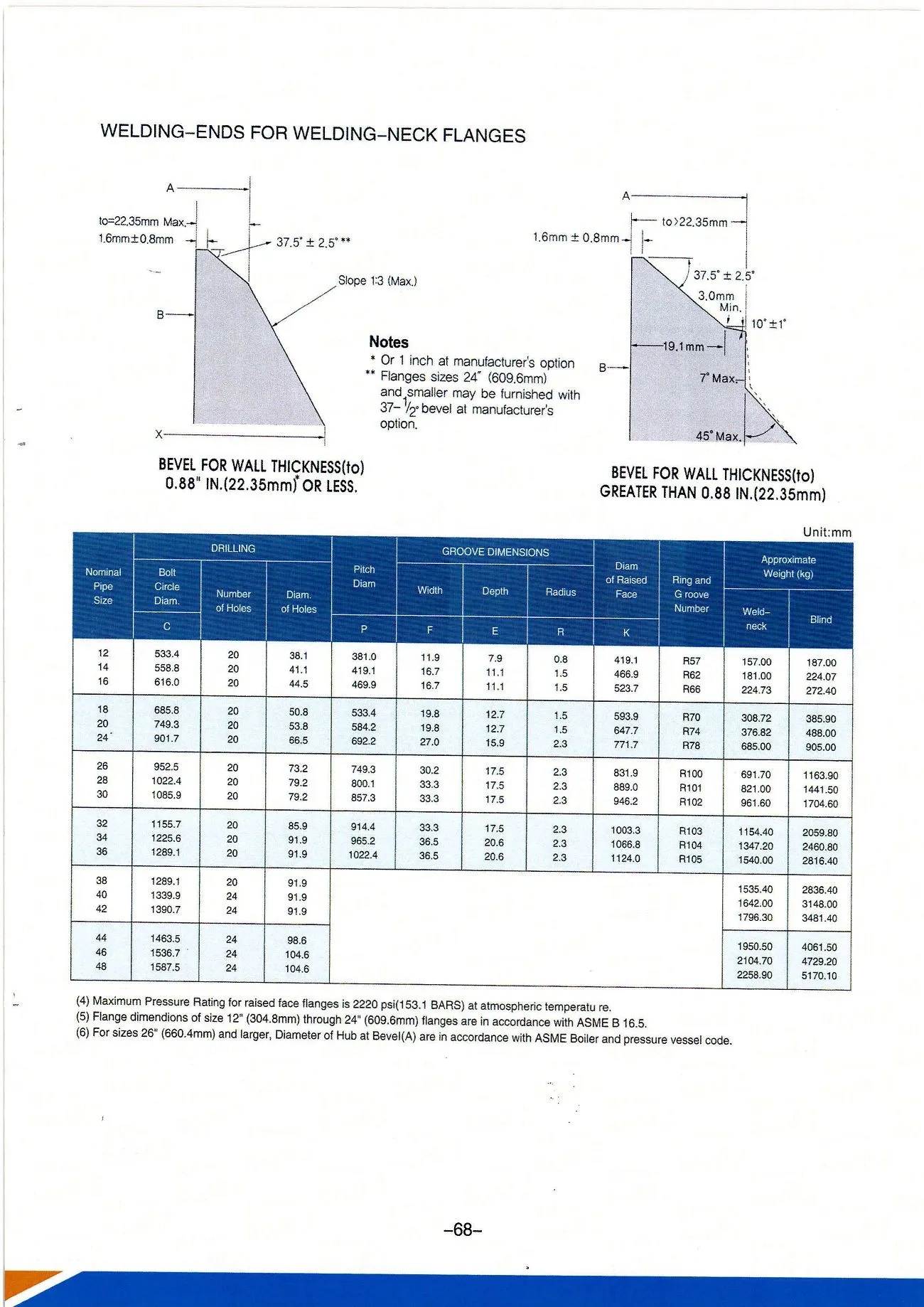

- Ring Type Joint (RTJ) Dominance: Due to the extreme pressures, Raised Face (RF) is rarely used for Class 900 in critical services. We specialize in machining precise RTJ grooves (R, RX, and BX series). The metal-to-metal seal of an RTJ joint is self-energizing; as internal pressure rises, the ring is forced harder into the groove, ensuring a leak-tight seal even under thermal cycling.
- Precision Groove Machining: Our CNC facilities machine RTJ grooves to tolerances within ±0.002 inches, ensuring perfect ring seating and preventing leakage paths.
- Bolt Load Management: The number and size of bolts required for a Class 900 flange are massive (e.g., an NPS 48" Series A may require 40+ bolts of 2" diameter or larger). We ensure perfect hole perpendicularity and spacing to allow hydraulic torque wrenches to apply the multi-ton clamp loads uniformly.
Critical Applications in High-Stakes Industries
The ANSI B16.47 Class 900 Flange is deployed where process conditions are most severe:
- Refinery Hydrocracking & Hydrotreating: Essential for reactors and separators operating at hydrogen partial pressures exceeding 1,500 psi, where hydrogen embrittlement and leakage risks are highest.
- High-Pressure Gas Transmission: Used in mainline pipelines and compressor discharge sections operating at 1,400–2,000 psi, particularly in dense population areas or difficult terrain requiring maximum safety factors.
- Power Generation (Supercritical/Ultra-Supercritical): Critical for main steam and hot reheat lines in modern high-efficiency power plants where steam pressures exceed 2,000 psi and temperatures reach 600°C+.
- Deep-Well Injection & EOR: Utilized in high-pressure water flood and CO2 injection wells where reservoir pressures are extremely high.
- Offshore Subsea & FPSO: Series A Class 900 Flanges are standard for subsea manifolds and riser bases where external hydrostatic pressure and internal process pressure create immense stress combinations.
Uncompromising Quality Assurance for Ultra-High Pressure
The potential energy stored in a Class 900 system is catastrophic if containment fails. Shanxi Xinshunda enforces the industry's strictest QA protocols:
- 100% Volumetric Inspection: Every forging undergoes 100% Ultrasonic Testing (UT) per ASTM A388. All welds on plate-built flanges undergo 100% Radiographic (RT) and Ultrasonic (UT) inspection.
- Surface & Subsurface Defect Detection: 100% Magnetic Particle (MT) and Liquid Penetrant (PT) testing on all machined surfaces, including RTJ grooves, bores, and bolt holes.
- Mechanical Property Verification: Extensive testing including Tensile, Yield, Elongation, Hardness, and Charpy V-Notch Impact tests at design temperatures. For alloy steels, we perform additional microstructure analysis.
- Dimensional Precision: Laser tracking and large-arm CMM verification of bolt circles, face flatness, and hub dimensions to ensure perfect fit-up in the field.
- Full Traceability: EN 10204 3.1/3.2 Mill Test Certificates provided for every unit, tracing chemistry and properties back to the original steel melt. Third-party inspection (SGS, BV, DNV, etc.) is welcomed and facilitated.
Specialized Heavy-Lift Logistics & Packaging
Handling ANSI B16.47 Class 900 Flanges requires industrial-scale logistics planning. An NPS 60" Class 900 Series A flange can weigh over 5,000 lbs (2,200 kg):
- Maximum Protection: Flange faces are protected with thick, bolted steel plates. RTJ grooves are fitted with custom-molded protective caps. Units receive heavy-duty anti-corrosion coating and VCI wrapping.
- Engineered Lifting Crates: We design and fabricate heavy-duty steel-skidded crates with integrated lifting lugs rated for the specific weight of the flange. Detailed lifting plans and center-of-gravity markings are affixed to each crate.
- Global Project Logistics: Our team manages complex Out-of-Gauge (OOG) shipments, securing break-bulk vessel space, heavy-lift air freight (if urgent), and specialized road transport permits for remote site delivery.
Partner with Shanxi Xinshunda for Ultra-High-Pressure Confidence
Selecting Shanxi Xinshunda for your ANSI B16.47 Class 900 Flange needs ensures access to a manufacturer with the heavy industrial capacity and technical expertise to handle the most demanding pressure ratings. Whether you require the ultimate strength of Series A or the optimized efficiency of Series B, in Carbon Steel, Stainless, Duplex, or Alloys, we deliver precision-engineered, code-compliant solutions. With nearly 20 years of experience powering the world's most critical energy infrastructure, our Class 900 Large-Diameter Flanges offer the reliability and safety your high-stakes projects demand. Contact our ultra-high-pressure division today for technical consultations, dimensional data, and competitive quotes.
