Shanxi Xinshunda Flange Manufacturing Co., Ltd. is a premier global manufacturer of ANSI B16.47 Class 600 Flanges, the industry-standard solution for large-diameter piping systems (NPS 26" to NPS 60") operating under high pressure. With a working pressure rating of approximately 1,440 psi (at ambient temperature for Carbon Steel), the Class 600 Flange represents a critical threshold in pipeline engineering, bridging the gap between moderate-pressure transmission lines and ultra-high-pressure process piping. Whether for high-pressure gas mains, refinery hydrocracker units, or power plant steam lines, our ANSI B16.47 Class 600 Flanges deliver the massive structural integrity and leak-tight reliability required for safe, continuous operation.
Defining the B16.47 Class 600: Series A vs. Series B
As with all ANSI B16.47 flanges, the Class 600 rating is available in two distinct series. Selecting the correct series is vital for mechanical compatibility and structural performance:

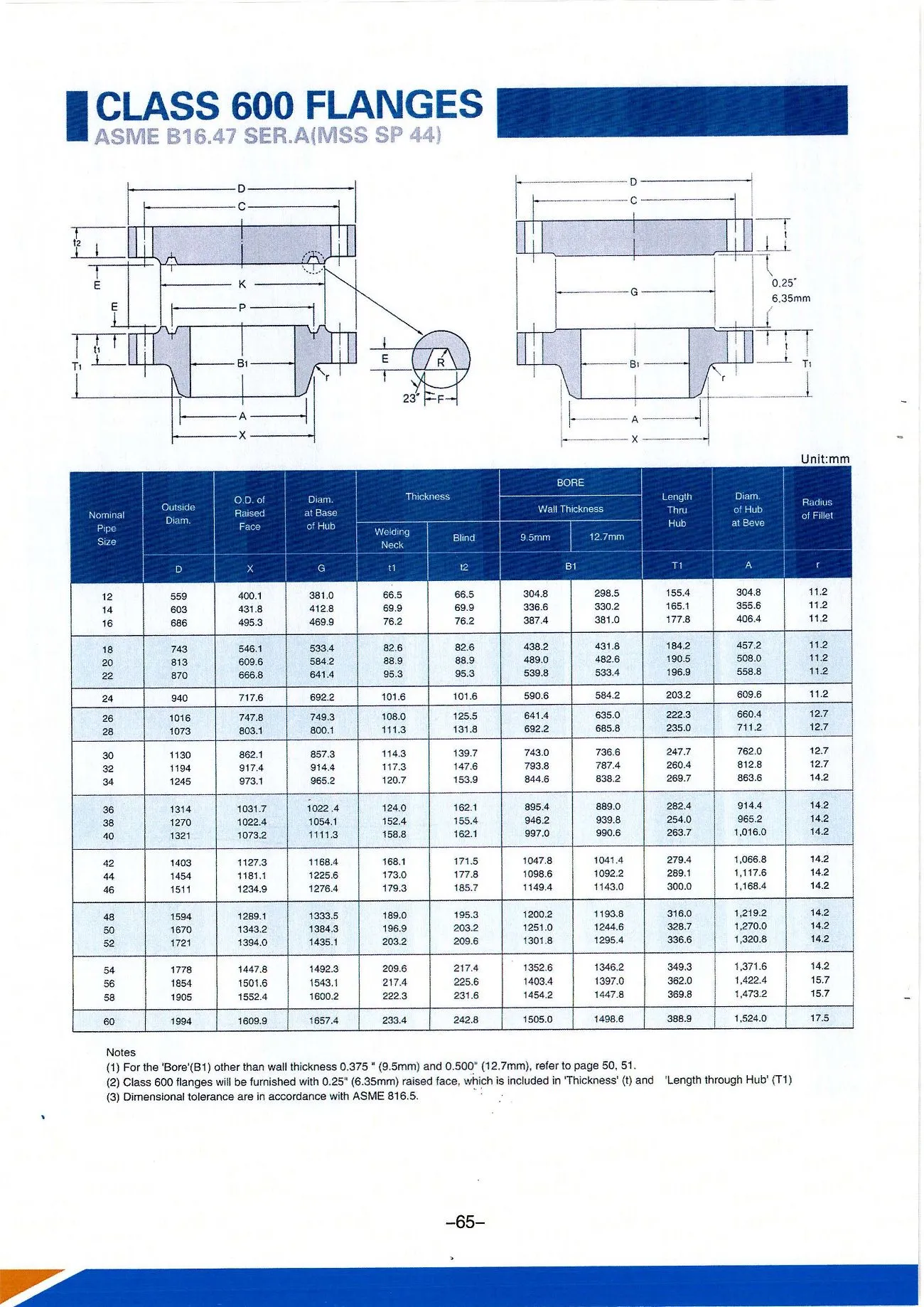

- Series A (Formerly MSS SP-44): Known for its robust design, Series A Class 600 Flanges feature a larger bolt circle diameter, a higher number of bolts, and thicker hubs compared to Series B. This series is often specified for offshore platforms, high-vibration environments, and applications where maximum rigidity and safety factors are non-negotiable. The increased bolt count distributes the massive clamp load required for 1,440+ psi service more evenly.

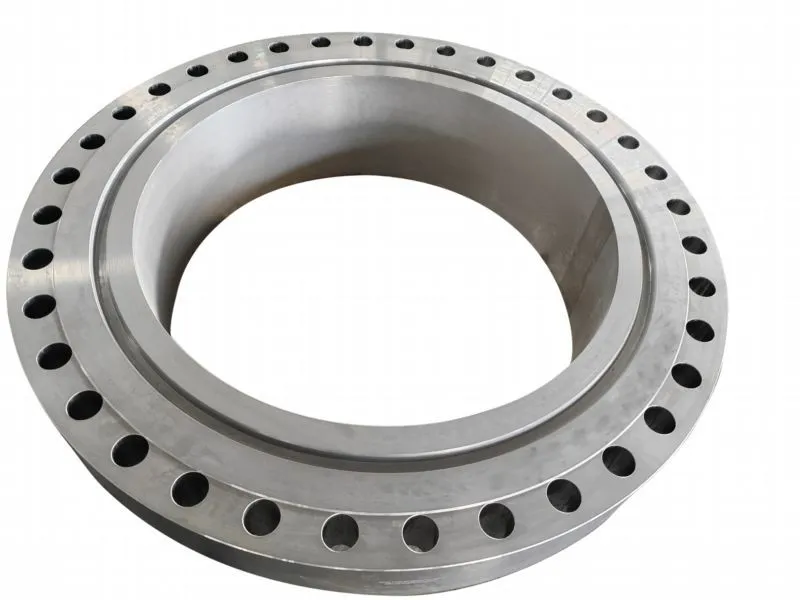

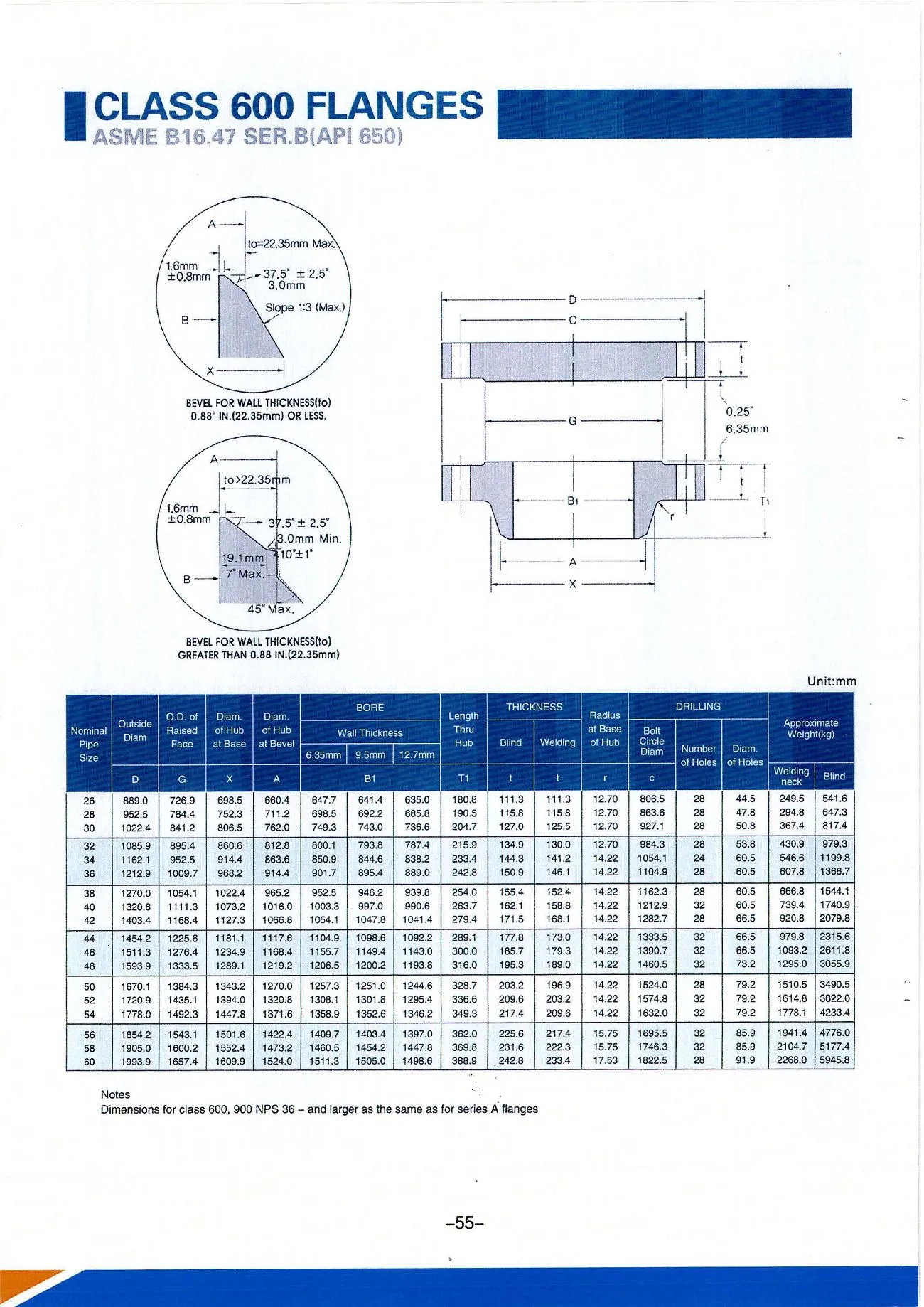

- Series B (Formerly API 605): Designed with a focus on weight optimization and cost-efficiency, Series B Class 600 Flanges have a smaller bolt circle and fewer bolts. Despite being "lighter," they are fully code-compliant for high-pressure service and are widely used in onshore oil and gas transmission pipelines where weight reduction translates to significant savings in support structures and installation labor.
- Critical Non-Interchangeability: It is imperative to note that Series A and Series B Class 600 Flanges cannot be bolted together. Their bolt hole patterns and diameters differ significantly. Our engineering team ensures precise specification matching to your project's valve and fitting inventory.
Engineering Excellence for High-Stress Environments
Manufacturing a Class 600 Flange in sizes up to 60 inches requires overcoming immense metallurgical and machining challenges due to the extreme wall thicknesses and bolt loads involved:
- Massive Material Requirements: At NPS 48" or 60", a Class 600 Flange can weigh several tons. We utilize advanced open-die forging for sizes up to NPS 36" and precision heavy-plate rolling/forming for larger diameters. All materials undergo rigorous heat treatment (Normalizing, Quench & Temper) to ensure uniform grain structure and toughness throughout the massive cross-section.
- Premium Material Grades: We supply ANSI B16.47 Class 600 Flanges in Carbon Steel (A105, A350 LF2/LF3), Stainless Steels (F304, F316, F316L, F321, F347), Duplex/Super Duplex (F51, F53, F55, F57), and Alloy Steels (F11, F22, F91). All sour service units are strictly compliant with NACE MR0175/MR0103 to prevent Sulfide Stress Cracking (SSC).

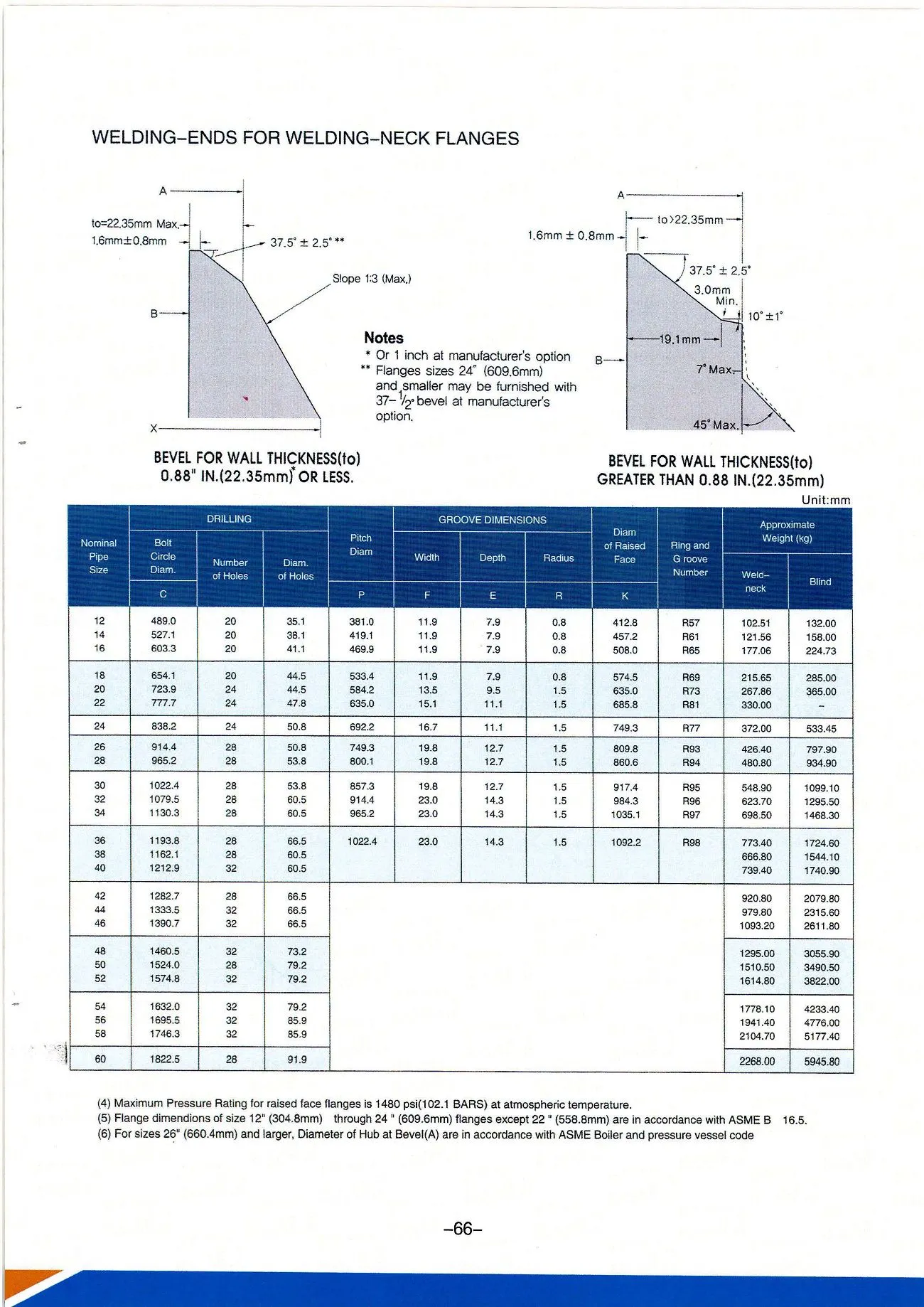

- Sealing Technologies:
- Raised Face (RF): Standard for many process applications, machined to precise serrated finishes (125–250 AARH) for use with spiral wound gaskets containing inner rings.
- Ring Type Joint (RTJ): The preferred choice for Class 600 high-pressure gas, hydrogen, and hazardous fluid services. We machine precise R-series, RX-series, or BX-series grooves to create a metal-to-metal seal that becomes tighter as internal pressure increases, ensuring zero leakage even under cyclic loading.
- High-Precision Machining: Drilling and tapping bolt holes in flanges with hub thicknesses exceeding 6–8 inches requires heavy-duty CNC boring mills. We guarantee perfect perpendicularity and angular spacing to ensure that hydraulic torque wrenches can apply the massive required bolt loads uniformly without binding.
Strategic Applications in Critical Infrastructure
The ANSI B16.47 Class 600 Flange is the backbone of high-pressure industrial systems:
- High-Pressure Gas Transmission: Essential for natural gas trunk lines operating at 1,000–1,400 psi, particularly in compressor station discharge headers and mainline block valves.
- Refinery Hydroprocessing Units: Widely used in Hydrocrackers and Hydrotreaters where hydrogen partial pressures are extremely high, requiring the leak-tight integrity of RTJ Class 600 Flanges.
- Power Generation: Critical for main steam lines, hot reheat lines, and high-pressure feedwater systems in coal, nuclear, and combined-cycle power plants.
- Petrochemical & LNG: Deployed in ethylene cracking furnaces, high-pressure polymerization reactors, and LNG liquefaction trains where cryogenic temperatures and high pressures coexist (requiring low-temp materials like LF2 or 304L).
- Carbon Capture & Storage (CCS): Increasingly used for supercritical CO2 transport and injection lines, where pressures often exceed 1,200 psi.
Uncompromising Quality Assurance for Massive Components
The stakes are highest when manufacturing Class 600 components due to the stored energy in the system. Shanxi Xinshunda implements a multi-layered QA protocol:
- 100% Volumetric NDT: All forgings and welds (on plate-built flanges) undergo 100% Ultrasonic Testing (UT) per ASTM A388/A577 to detect internal flaws. Radiographic Testing (RT) is performed on all circumferential welds for plate flanges.
- Surface Inspection: Every machined surface, including the sealing face, bore, and bolt holes, is inspected via Magnetic Particle (MT) and Liquid Penetrant (PT) testing to ensure zero surface defects.
- Mechanical & Impact Testing: Comprehensive tensile, yield, elongation, and hardness testing is conducted on every heat lot. For low-temperature service, Charpy V-Notch impact testing is performed at specified temperatures (e.g., -46°C for LF2, -196°C for 304L).
- Dimensional Validation: We use laser tracking systems and large-coordinate measuring machines (CMM) to verify bolt circle diameters, face flatness, and hub dimensions against ASME B16.47 tables with micron-level accuracy.
- Full Traceability: Every Class 600 Flange is supplied with EN 10204 3.1/3.2 Mill Test Certificates, providing full traceability from the steel melt to the final machined product.
Specialized Heavy-Lift Logistics
Transporting ANSI B16.47 Class 600 Flanges is a logistical feat due to their extreme weight (an NPS 60" Class 600 Series A flange can weigh over 3,500 lbs / 1,600 kg):
- Reinforced Protection: Flange faces are protected with thick, bolted steel covers. RTJ grooves are fitted with custom plastic or wooden guards. Units are coated with heavy-duty, long-term corrosion inhibitors and wrapped in VCI paper.
- Engineered Lifting Solutions: We fabricate custom steel-skidded crates or heavy-timber boxes designed for direct lifting by site cranes. Each crate includes clear center-of-gravity markings, lifting lug diagrams, and weight certificates.
- Global OOG Shipping: Our logistics experts manage Out-of-Gauge (OOG) cargo, securing break-bulk vessel space, flat-rack containers, and necessary road transport permits to deliver these massive components to remote job sites worldwide.
Partner with Shanxi Xinshunda for High-Pressure Reliability
Choosing Shanxi Xinshunda for your ANSI B16.47 Class 600 Flange requirements ensures you receive components engineered for the most demanding high-pressure environments. Whether your project demands the robustness of Series A or the efficiency of Series B, in Carbon Steel or exotic alloys, we have the capacity, technology, and expertise to deliver. With nearly 20 years of experience serving the global energy sector, our Class 600 Large-Diameter Flanges provide the strength, precision, and safety your critical infrastructure depends on. Contact our high-pressure division today for technical data, dimensional drawings, and competitive quotations.
