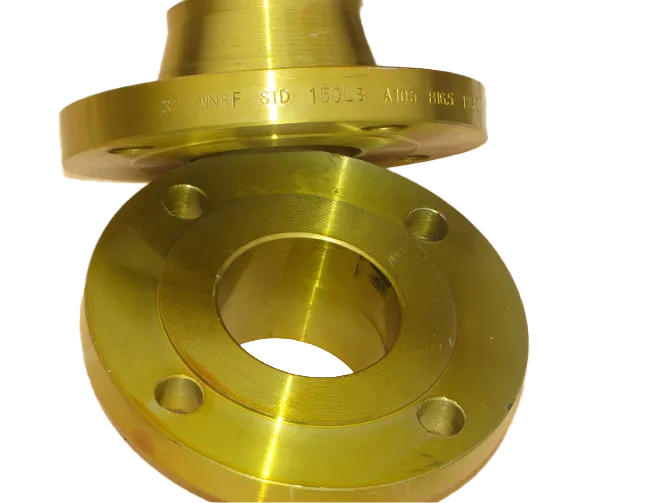

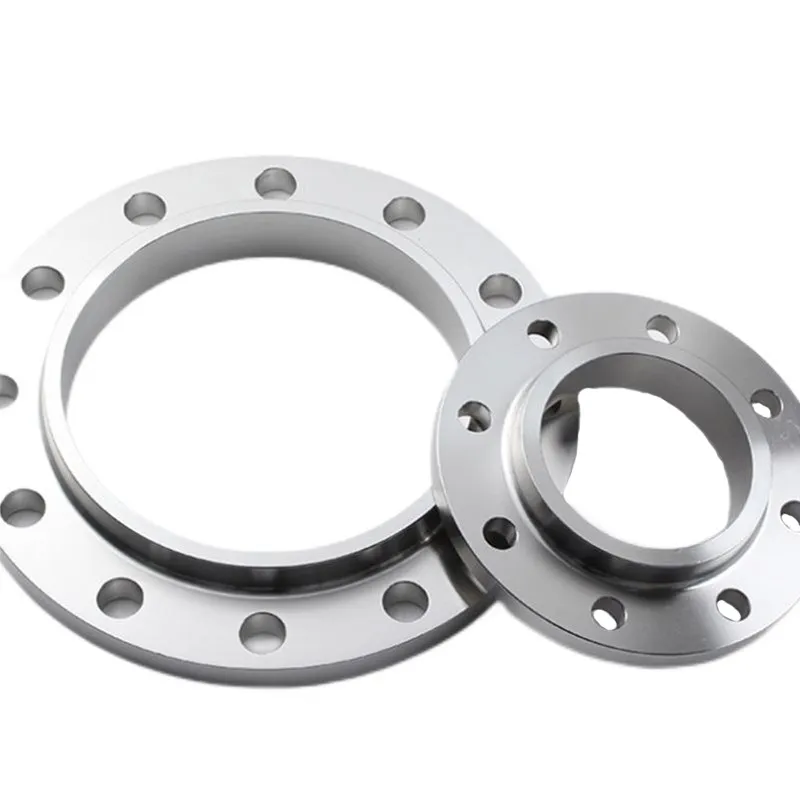

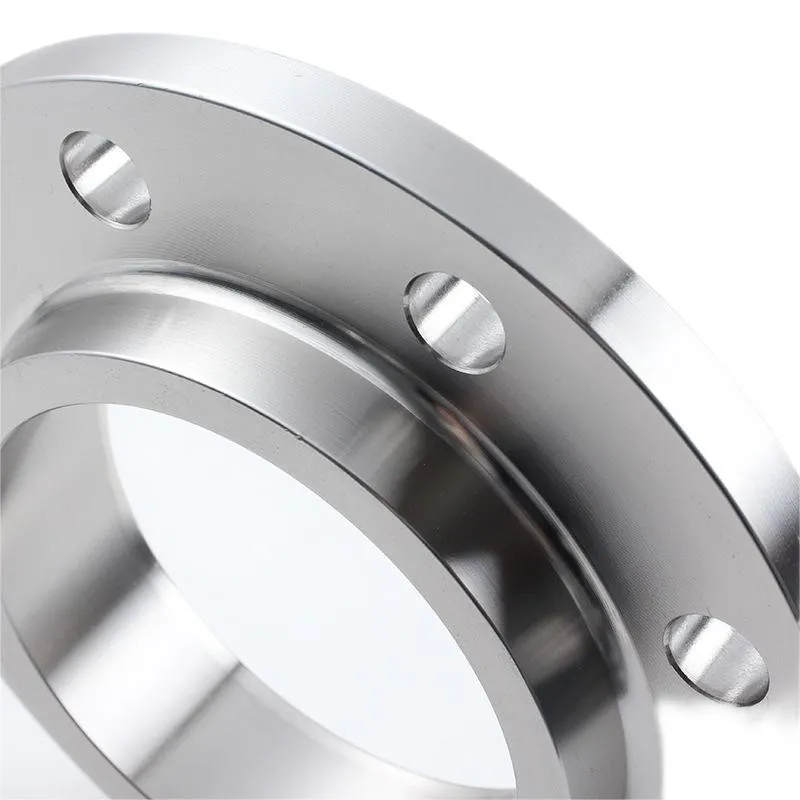

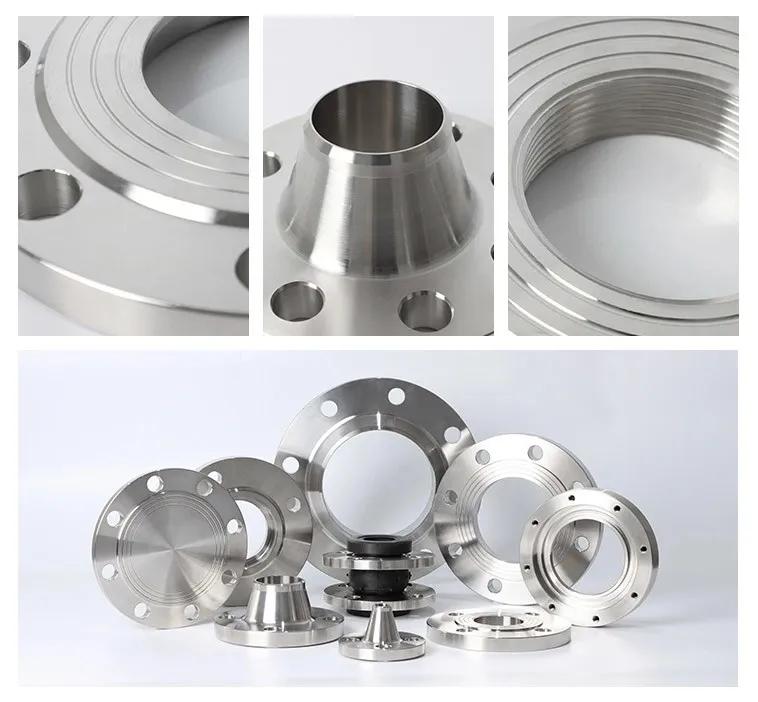

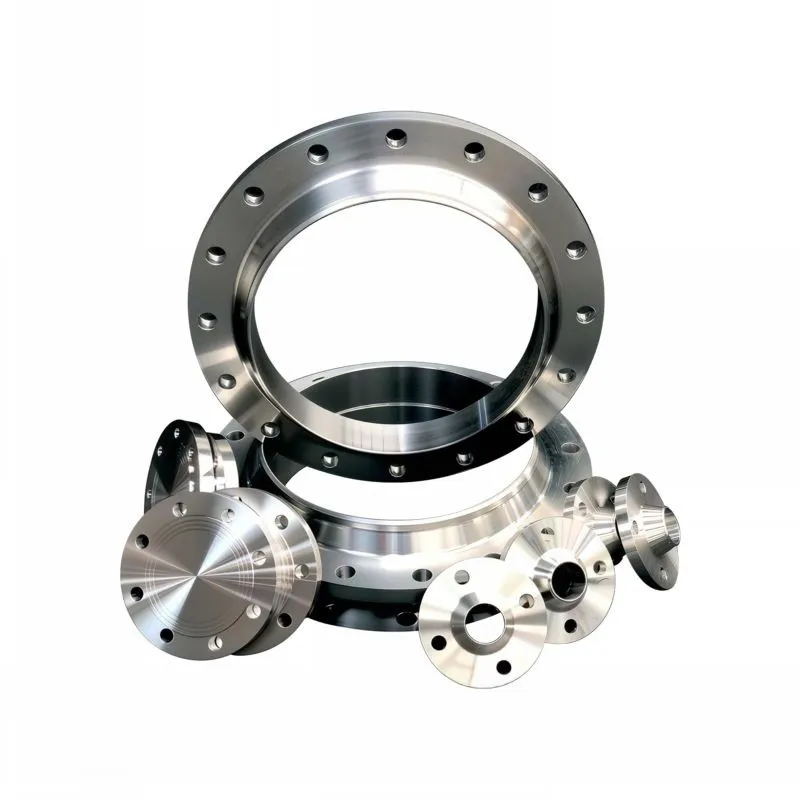

Shanxi Xinshunda Flange Manufacturing Co., Ltd. specializes in the production of the ANSI B16.5 Class 900 flange, a critical component designed for ultra-high-pressure piping systems where standard pressure classes are insufficient. As industrial processes become more demanding, the need for robust connectivity that can withstand extreme internal forces has never been greater. Our ANSI B16.5 Class 900 flange series represents the pinnacle of our forging capabilities, delivering unmatched structural integrity for the world's most challenging energy and chemical applications. With nearly two decades of manufacturing excellence, we ensure every unit meets the rigorous safety standards required for high-stakes operations.
Advanced Metallurgy and Precision Forging
The manufacturing of an ANSI B16.5 Class 900 flange requires superior materials and advanced processing techniques to handle pressures significantly higher than Class 600 or 300 variants. We utilize high-strength forged alloys, including Carbon Steel A105, Stainless Steel A182 F304/F316/F316L, and specialized Alloy Steels like F11, F22, and F5. Each ANSI B16.5 Class 900 flange undergoes precise heat treatment cycles to enhance tensile strength, yield strength, and impact resistance, ensuring durability under severe thermal and mechanical stress. Our state-of-the-art CNC machining guarantees that every ANSI B16.5 Class 900 flange adheres strictly to ASME B16.5 dimensional tolerances, providing perfect bolt hole alignment and optimal sealing surface finishes (125-250 µin Ra) essential for preventing leaks in high-pressure environments.
Critical Applications in High-Stakes Industries
The ANSI B16.5 Class 900 flange is indispensable in sectors where system failure is not an option. In the upstream oil and gas industry, these flanges are essential for high-pressure wellheads, Christmas trees, and gathering lines that operate at extreme depths and pressures. Petrochemical refineries deploy the ANSI B16.5 Class 900 flange in hydrocracker units, high-pressure reactors, and hydrogen service lines where containment is critical. Power generation facilities, particularly those with supercritical and ultra-supercritical steam cycles, integrate our ANSI B16.5 Class 900 flange into main steam and hot reheat lines. Furthermore, they are vital in offshore subsea processing systems, high-pressure water injection for enhanced oil recovery, and specialized chemical synthesis processes. The unique pressure rating of the ANSI B16.5 Class 900 flange offers engineers a reliable solution for designs requiring maximum safety factors.
Uncompromising Quality Assurance and Testing
Producing a safe and reliable ANSI B16.5 Class 900 flange demands a stringent quality control protocol. At Shanxi Xinshunda, every batch is subject to comprehensive verification starting with raw material certification (EN 10204 3.1). Our ISO 9001-certified facility employs advanced Coordinate Measuring Machines (CMM) to validate the complex geometry of each ANSI B16.5 Class 900 flange, ensuring hub thickness, bore diameter, and face flatness meet exact specifications. Crucially, all units undergo hydrostatic testing at pressures far exceeding their rated limits to guarantee zero leakage potential. We also perform extensive Non-Destructive Testing (NDT), including Ultrasonic Testing (UT), Magnetic Particle Inspection (MPI), and Liquid Penetrant Testing (PT), to detect any internal or surface flaws. Full traceability ensures that every ANSI B16.5 Class 900 flange shipped is compliant with international safety codes.
Secure Packaging and Global Logistics
To protect the integrity of each ANSI B16.5 Class 900 flange during global transit, we implement heavy-duty export packaging solutions. Components are coated with long-term anti-corrosive preservatives, wrapped in moisture-resistant barriers, and secured in reinforced wooden crates or steel pallets designed to withstand rough handling. Clear labeling identifies heat numbers, size, class rating, material grade, and project specifics for seamless inventory management. Our experienced logistics team ensures the timely delivery of your ANSI B16.5 Class 900 flange orders to over 70 countries, accompanied by complete documentation sets including test reports, certificates of origin, and mill test certificates.
Partner with Shanxi Xinshunda for Ultra-High Pressure Needs
Choosing Shanxi Xinshunda for your ANSI B16.5 Class 900 flange requirements means partnering with a manufacturer dedicated to solving the most complex engineering challenges. We offer competitive direct pricing, custom machining for non-standard configurations, and expert technical consultation on material selection for specific pressure-temperature profiles. Whether for new greenfield projects or the maintenance of existing high-pressure infrastructure, our ANSI B16.5 Class 900 flange products deliver the durability and safety your operations demand. Contact our sales team today for detailed catalogs, technical data sheets, and personalized quotations.
