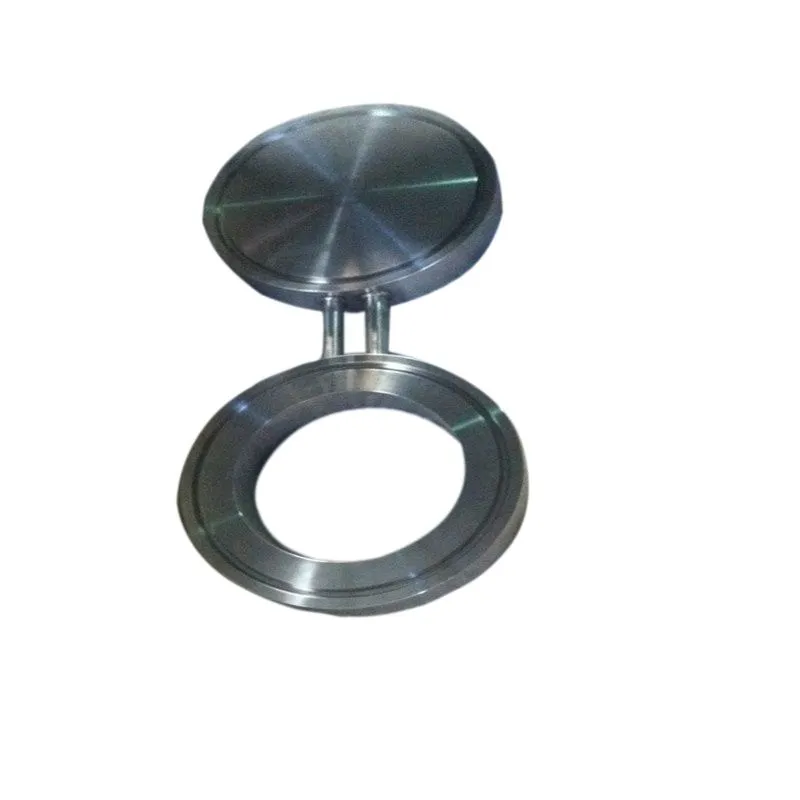

Shanxi Xinshunda Flange Manufacturing Co., Ltd. stands as a specialized global leader in the production of ANSI B16.48 Class 900 Spectacle Blind Flanges (Figure-8 Blinds), engineered for the most severe service conditions in the process industry. Covering pipe sizes from NPS ½" to NPS 24", the Class 900 rating represents a critical threshold with a working pressure of approximately 2,220 psi (for Carbon Steel at ambient temperature). This class is exclusively reserved for high-pressure hydroprocessing units, supercritical steam lines, and critical gas transmission systems where standard Class 600 components are insufficient. Our Class 900 Spectacle Blinds represent the pinnacle of heavy fabrication, combining massive structural mass with micron-level sealing precision to ensure absolute safety under extreme stress.
The Engineering Leap: Why Class 900 is Different
Transitioning from Class 600 to Class 900 involves a non-linear increase in material mass, bolt load, and manufacturing complexity. At 2,200+ psi, the forces attempting to separate the flange faces or bow the blind disc are immense:
- Extreme Disc Thickness: The solid "blind" side of a Class 900 spectacle blind is exceptionally thick. For larger sizes (NPS 12"–24"), the thickness can exceed several inches, requiring advanced forging techniques or heavy plate lamination to prevent elastic deformation under full design pressure.
- Reinforced Bridge Architecture: The connecting bridge is the most vulnerable point during rotation. In Class 900, we employ reinforced bridge designs with generous fillet radii and often utilize normalized-and-tempered heat treatments to maximize toughness and prevent fatigue cracking at the stress concentration points.
- Mandatory Raised Face (RF): Flat Face (FF) is strictly prohibited for Class 900 steel services. We machine a precise Raised Face (RF) with a controlled serrated finish (125–250 AARH). This geometry is critical for concentrating the enormous bolt load onto the gasket, creating a metal-to-gasket seal that resists blowout at 2,220 psi.
- Bolt Load Precision: Class 900 flanges require high-strength alloy bolts (e.g., ASTM A193 B7) tightened to extreme torque values. Our CNC drilling ensures perfect hole perpendicularity and spacing to prevent uneven loading, which could lead to catastrophic gasket failure.
Advanced Manufacturing & Material Mastery
Producing ANSI B16.48 Class 900 Spectacle Blinds demands the highest tier of metallurgical control and fabrication capability:
- Forging Dominance (NPS ½" – 16"): For sizes up to 16 inches, Shanxi Xinshunda exclusively uses Open-Die Forging. This ensures continuous grain flow around the bore and through the bridge, providing superior impact strength and resistance to hydrogen embrittlement and fatigue cracking.
- Heavy Plate Fabrication & Casting (NPS 18" – 24"): For the largest diameters, we utilize ultra-high-strength steel plates or premium castings. All welds (if applicable in fabrication) are full-penetration, followed by mandatory Post-Weld Heat Treatment (PWHT) to relieve residual stresses.
- Comprehensive Material Portfolio:
- Carbon & Low-Temp Steel: A105, A350 LF2/LF3 (for cryogenic and general high-pressure service).
- Stainless Steels: F304/L, F316/L, F321, F347 (for corrosive high-pressure acids/caustics).
- Duplex/Super Duplex: F51, F53, F55, F57 (for high-strength seawater injection and sour gas).
- High-Temp Alloys: F11, F22, F91 (for supercritical power plant steam >500°C).
- Exotic Alloys: Monel, Inconel, Hastelloy, Titanium for extreme corrosion niches.
- Sour Service Compliance: Full compliance with NACE MR0175/MR0103 is standard. We enforce strict hardness controls (typically <22 HRC for carbon/low-alloy steels) and specific heat treatment cycles to prevent Sulfide Stress Cracking (SSC) in H2S environments.
Critical Applications in Extreme Environments
The Class 900 Spectacle Blind is deployed only where process conditions are life-critical and pressures are extreme:
- Hydrocrackers & Hydrotreaters: Essential for isolating reactors and high-pressure separators operating at hydrogen partial pressures exceeding 1,500 psi, where hydrogen embrittlement and leakage risks are paramount.
- Supercritical Power Plants: Critical for main steam lines and boiler feed pumps operating at pressures >2,000 psi and temperatures >550°C.
- High-Pressure Gas Transmission: Used in mainline pipelines and compressor stations where maximum safety factors are legally required.
- Petrochemical Synthesis: Deployed in high-pressure polymerization reactors (e.g., LDPE) and ammonia/methanol synthesis loops.
- Offshore Deepwater: Standard for subsea trees and manifolds where internal process pressure combines with external hydrostatic pressure.
Uncompromising Quality Assurance for Catastrophic Risk Mitigation
At 2,220 psi, a failure would be catastrophic. Shanxi Xinshunda enforces a "Zero Defect" QA philosophy for all Class 900 Spectacle Blinds:
- 100% Volumetric NDT: Every forging undergoes 100% Ultrasonic Testing (UT) per ASTM A388/A577. All welds on fabricated units undergo 100% Radiographic (RT) and Ultrasonic (UT) inspection.
- Surface Integrity: 100% Magnetic Particle (MT) and Liquid Penetrant (PT) testing on all machined surfaces, with special focus on the Raised Face serrations, blind center, and bridge roots.
- Mechanical & Impact Verification: Comprehensive testing including Tensile, Yield, Elongation, Hardness mapping, and Charpy V-Notch Impact tests at design temperatures. For alloy steels, we perform microstructure analysis and delta ferrite checks.
- Dimensional Validation: Laser tracking and CMM verification of thickness, bolt circles, and face flatness to ensure perfect fit-up under high bolt loads.
- Full Traceability: EN 10204 3.1/3.2 Mill Test Certificates provided for every unit. We actively facilitate third-party inspections from DNV, BV, SGS, Lloyds, and ABS.
Specialized Heavy-Lift Logistics & Packaging
Transporting Class 900 Spectacle Blinds is a major logistical operation due to their extreme weight (an NPS 24" Class 900 blind can weigh over 2,000 lbs / 900 kg):
- Maximum Protection: Blind faces are protected with thick, bolted steel armor plates. Units receive multi-layer heavy-duty anti-corrosion coating and VCI wrapping.
- Engineered Lifting Crates: We design and fabricate heavy-duty steel-skidded crates with integrated, certified lifting lugs rated for the specific weight and center of gravity. Detailed lifting plans are affixed to each crate.
- Global Project Logistics: Our team manages complex Out-of-Gauge (OOG) shipments, securing break-bulk vessel space and specialized road transport permits for remote site delivery worldwide.
Partner with Shanxi Xinshunda for Ultimate Pressure Confidence
Choosing Shanxi Xinshunda for your ANSI B16.48 Class 900 Spectacle Blind Flanges means partnering with a manufacturer capable of delivering the highest tier of isolation technology. Whether you need forged carbon steel for a refinery turnaround or super duplex for an offshore injection line, we deliver precision-engineered, code-compliant solutions. With nearly 20 years of experience powering the world's most critical energy infrastructure, our Class 900 Spectacle Blinds offer the reliability, safety, and performance your high-stakes projects demand. Contact our extreme-pressure division today for technical consultations, dimensional data, and competitive quotes.
