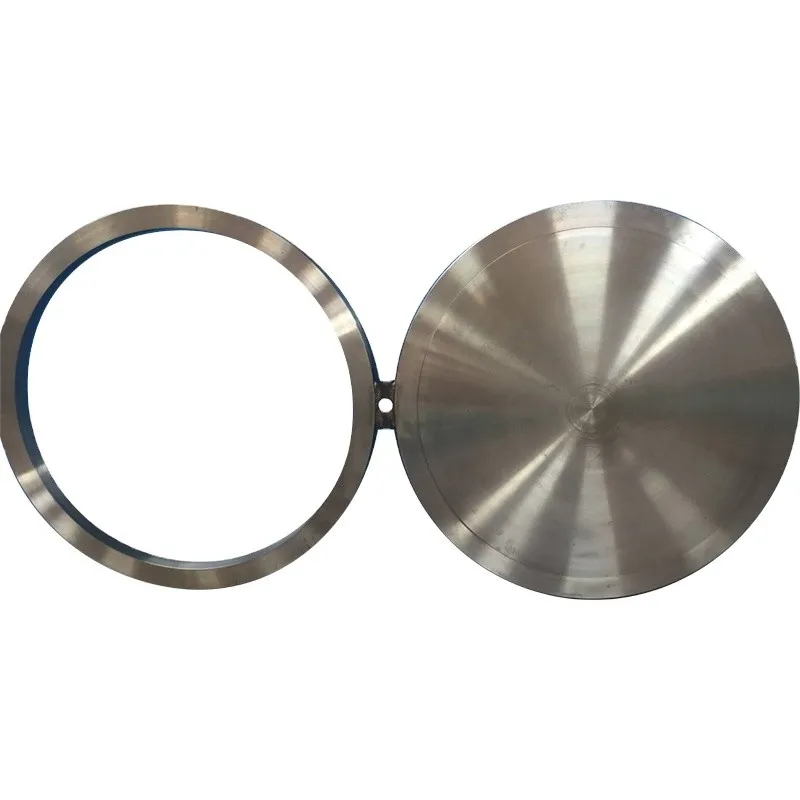

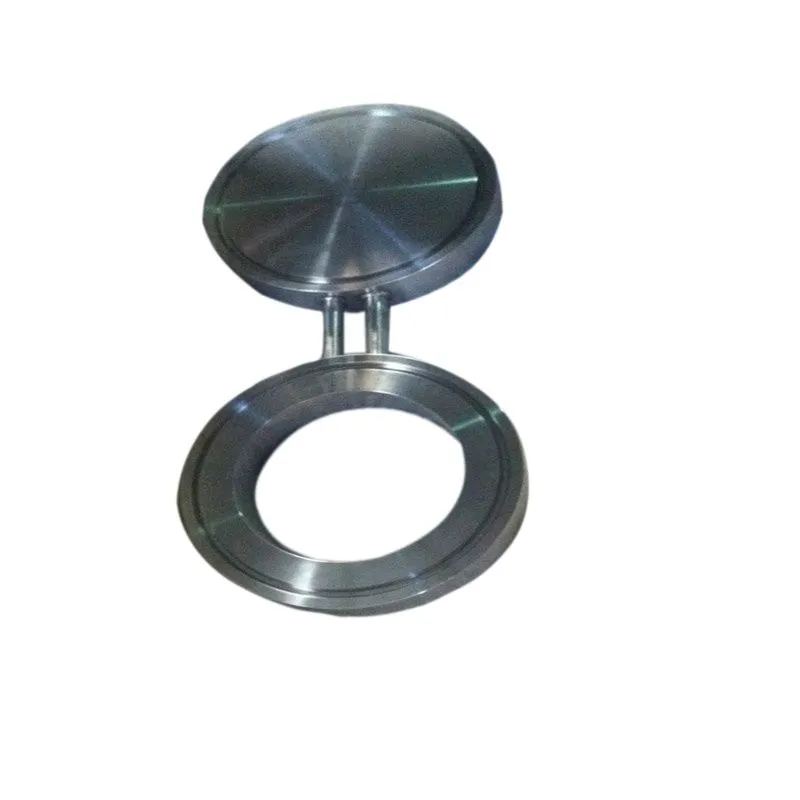

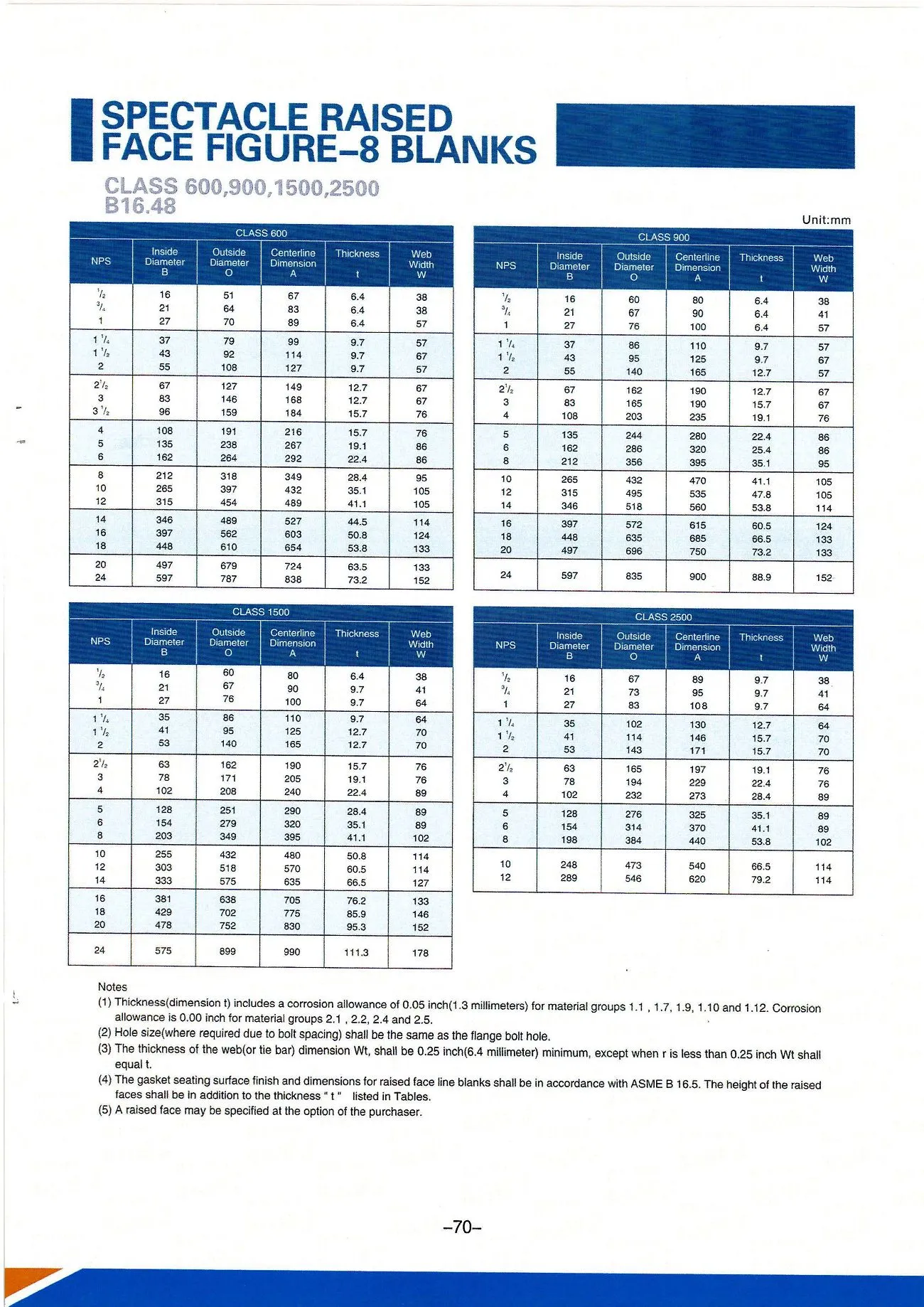

Shanxi Xinshunda Flange Manufacturing Co., Ltd. operates at the absolute limit of flange manufacturing technology with our ANSI B16.48 Class 2500 Spectacle Blind Flanges. Designed for the most extreme environments in the global energy sector, the Class 2500 rating corresponds to a working pressure of approximately 6,175 psi (425 bar) for Carbon Steel at ambient temperature. This class is not merely "high pressure"; it is Ultra-High Pressure (UHP), reserved exclusively for critical nodes in hydrogen production, high-pressure gas injection, urea synthesis, and deep-subsea wellheads. Our Class 2500 Spectacle Blinds are monolithic barriers engineered to withstand forces that would catastrophically fail lower-class components, ensuring absolute positive isolation where human safety and asset integrity are paramount.
The Physics of Class 2500: A Different League of Engineering
The transition from Class 1500 to Class 2500 represents a quantum leap in structural mechanics. At over 6,000 psi, the internal force trying to separate the flange faces or bow the blind disc is immense:
- Monolithic Massive Thickness: The solid "blind" disc is exceptionally thick, often exceeding 6 to 10 inches depending on the size. For an NPS 12" Class 2500 blind, the weight can surpass 1,500 lbs (680 kg). This mass is non-negotiable; it prevents elastic deformation that would instantly break a Ring-Type Joint (RTJ) seal.
- Integral Forging Only: Welded fabrication is generally unacceptable for Class 2500 spectacle blinds due to the risk of weld seam failure under cyclic UHP loading. Shanxi Xinshunda manufactures these units exclusively via Open-Die Forging from premium vacuum-degassed ingots. This ensures continuous grain flow through the bridge and disc, eliminating weak points.
- Ring-Type Joint (RTJ) Mandatory: Raised Face (RF) gaskets cannot seal at 6,000+ psi. RTJ gaskets (Series R, RX, or BX) are mandatory. We machine these grooves with micron-level precision (tolerances within ±0.002"). The geometry creates a metal-to-metal seal that becomes tighter as internal pressure increases, utilizing the process pressure itself to enhance the seal.
- Hyper-High Bolt Loads: Class 2500 flanges require massive alloy steel studs (often ASTM A193 B7, B7M, or B16, sometimes up to 2" or 3" diameter) tightened to extreme pre-loads using hydraulic tensioners. Our bolt hole drilling utilizes 5-axis CNC machining to ensure perfect perpendicularity; even a 0.5° deviation can cause uneven loading and gasket extrusion at this pressure.
Elite Manufacturing Capabilities & Metallurgy
Producing ANSI B16.48 Class 2500 Spectacle Blinds requires facilities equipped for heavy aerospace-grade forging and ultra-precision machining:
- Vacuum Degassed Forgings: We start with vacuum-degassed steel ingots to remove hydrogen and oxygen, preventing internal porosity and Hydrogen Induced Cracking (HIC).
- Advanced Heat Treatment: Every unit undergoes precise Quenching and Tempering (Q&T) to achieve the optimal balance of high yield strength and fracture toughness. For sour service, we apply specialized tempering cycles to keep hardness below NACE limits while maintaining strength.
- Specialized Material Grades:
- High-Strength Low-Alloy (HSLA): ASTM A182 F22, F91, F92 for high-temperature steam and power applications.
- Super Duplex & Hyper-Duplex: F53, F55, F57, F59. Essential for offshore UHP seawater injection where yield strengths >800 MPa are required to resist collapse and corrosion.
- Nickel Alloys: Inconel 625, 718, 725; Hastelloy C276; Monel 400/K500. Used in aggressive acid services (HF alkylation, urea) where stainless steel fails.
- Titanium: Grade 2, 5, and 12 for specific corrosive UHP chlor-alkali or offshore applications.
- Sour Service Mastery: Full compliance with NACE MR0175/MR0103. We perform rigorous HIC/SOHIC testing (NACE TM0284), SSC testing (TM0177), and strict hardness mapping (<22 HRC or specific alloy limits).
Critical Applications: Where Failure is Not an Option
The Class 2500 Spectacle Blind is deployed only in the most hazardous, high-value, and technically demanding processes:
- Green & Blue Hydrogen Plants: Critical for isolating electrolyzers and compressors operating at 3,000–6,000+ psi. Hydrogen embrittlement risks are extreme at this pressure.
- Enhanced Oil Recovery (EOR) & Gas Injection: Used in CO2 and natural gas injection wells where surface pressures exceed 5,000 psi.
- Urea Synthesis (Stripping Processes): Isolating sections handling carbamate fluids at >2,500 psi and highly corrosive conditions.
- Deepwater & Ultra-Deepwater Subsea Systems: Standard for subsea trees, manifolds, and jumpers where internal process pressure combines with extreme external hydrostatic pressure (10,000 ft+ water depth).
- Supercritical Power Generation: Main steam lines in ultra-supercritical coal and biomass plants operating at >4,000 psi.
"Zero-Defect" Quality Assurance Protocol
At 6,175 psi, a microscopic defect can lead to a catastrophic explosion. Shanxi Xinshunda enforces a QA regime stricter than any standard code:
- 100% Volumetric NDT: Mandatory 100% Ultrasonic Testing (UT) per ASTM A388/A577 with sensitivity levels calibrated for fine-grain UHP steels. Radiographic Testing (RT) is performed on critical sections if requested.
- Surface Integrity: 100% Magnetic Particle (MT) and Liquid Penetrant (PT) inspection on all surfaces, with double inspection on RTJ grooves and bridge roots.
- Mechanical Validation: Full mechanical testing including Tensile, Yield, Elongation, Hardness Mapping (grid pattern across the entire face and bridge), and Charpy V-Notch Impact tests at Minimum Design Metal Temperature (MDMT).
- Dimensional Metrology: Coordinate Measuring Machine (CMM) verification of RTJ groove angles, depths, and face flatness to ensure perfect gasket engagement.
- Third-Party Oversight: We routinely facilitate inspections by DNV, BV, SGS, Lloyds, ABS, PED (CE), and CRN. EN 10204 3.2 certificates are standard.
Specialized Heavy-Lift Logistics & Installation Support
Handling Class 2500 Spectacle Blinds is a major engineering operation. An NPS 24" unit can weigh over 4,000 lbs (1,800 kg):
- Armor-Plated Transit: Blind faces and RTJ grooves are protected by custom-machined, bolted steel armor plates. Units are coated with heavy-duty anti-corrosion systems and wrapped in VCI paper.
- Engineered Lifting Crates: We design ISO-certified steel skids with integrated lifting lugs rated for 5x the working load. Detailed lifting plans, center-of-gravity markers, and rigging diagrams are laser-etched onto the crate.
- Installation Engineering: Our team provides detailed hydraulic torque/tensioning sequences, RTJ gasket selection guides (material/hardness matching), and on-site supervision recommendations for safe installation.
Partner with Shanxi Xinshunda for Ultra-High-Pressure Confidence
Choosing Shanxi Xinshunda for your ANSI B16.48 Class 2500 Spectacle Blind Flanges means partnering with one of the few manufacturers globally capable of delivering safe, reliable isolation for Ultra-High-Pressure systems. Whether you need vacuum-degassed carbon steel for a hydrogen hub or hyper-duplex for a deepwater project, we deliver precision-engineered, code-compliant solutions backed by nearly 20 years of heavy industrial expertise. Our Class 2500 Spectacle Blinds represent the ultimate safeguard for your most critical assets. Contact our UHP division today for technical consultations, dimensional data, and competitive quotes.
