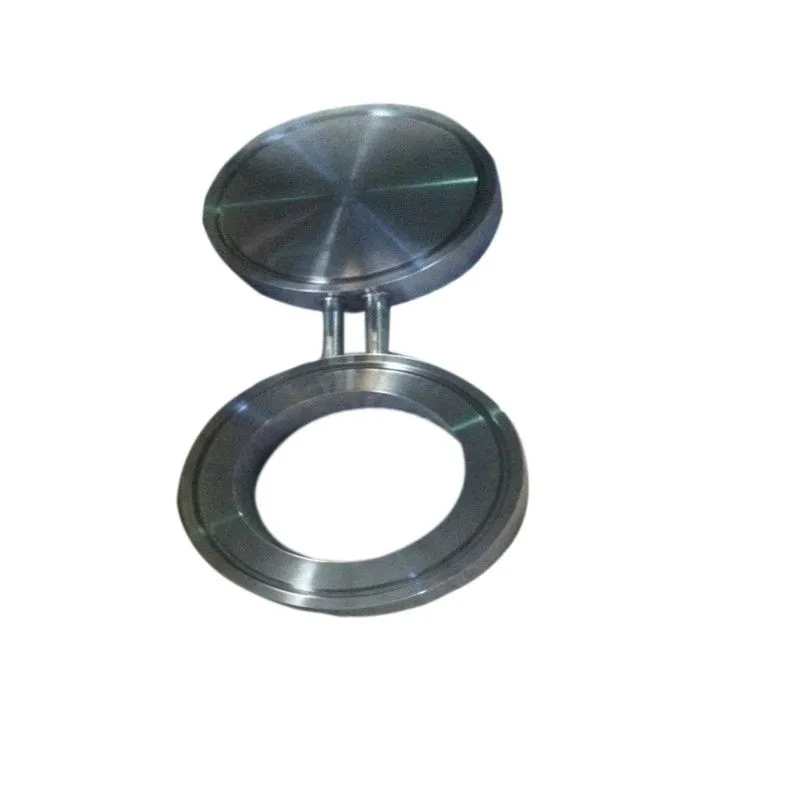

Shanxi Xinshunda Flange Manufacturing Co., Ltd. specializes in the precision engineering and fabrication of ANSI B16.48 Class 600 Spectacle Blind Flanges (Figure-8 Blinds), the definitive solution for positive isolation in high-pressure piping systems ranging from NPS ½" to NPS 24". With a working pressure rating of approximately 1,480 psi (for Carbon Steel at ambient temperature), the Class 600 tier represents a significant leap in structural requirements compared to lower classes. These components are indispensable in high-pressure hydrocarbon processing, steam power generation, and critical chemical synthesis where the margin for error is zero. Our Class 600 Spectacle Blinds combine massive structural integrity with micron-level machining precision to ensure absolute leak-tightness under extreme stress.
Engineering Challenges: The Class 600 Difference
Moving from Class 300 to Class 600 is not merely an incremental change; it requires a fundamental shift in manufacturing approach due to the exponential increase in bolt loads and internal pressure forces:
- Massive Thickness & Weight: The solid "blind" disc of a Class 600 unit is significantly thicker than Class 150 or 300 equivalents to prevent elastic deformation (bowing) under 1,500+ psi. For example, an NPS 24" Class 600 blind can weigh several times more than its Class 150 counterpart, requiring heavy-duty forging or casting techniques.
- Bridge Reinforcement: The connecting "bridge" between the blind and spacer rings must be engineered to withstand immense shear forces during rotation. In Class 600, we often utilize reinforced bridge designs or specific heat treatments to prevent fatigue cracking at the bridge-root junction.
- Raised Face (RF) Dominance: Flat Face (FF) is rarely used for Class 600 steel piping. Our standard is a precision-machined Raised Face (RF) with a serrated finish (125–250 AARH). This design concentrates bolt load on the gasket, creating a seal capable of withstanding high internal pressures without blowout.
- Bolt Load Management: Class 600 flanges utilize larger diameter bolts and higher torque values. Our blinds are machined with perfect hole perpendicularity to ensure that when tightened, the load is distributed evenly, preventing the "cocking" that leads to leaks.
Advanced Manufacturing & Material Capabilities
Producing ANSI B16.48 Class 600 Spectacle Blinds demands superior metallurgy and rigorous process control:
- Forging vs. Casting:
- NPS ½" – 12": We predominantly use Open-Die Forging (ASTM A105/A182) to ensure continuous grain flow, providing superior impact strength and fatigue resistance essential for high-pressure cycling.
- NPS 14" – 24": For larger diameters, we utilize high-integrity Steel Casting (ASTM A216 WCB/WCC) or heavy plate fabrication, followed by full volumetric inspection to detect any internal defects.
- Material Portfolio:
- Carbon Steel: A105, A350 LF2/LF3 (for low-temp services down to -46°C).
- Stainless Steels: F304/L, F316/L, F321, F347 for corrosive high-pressure acids and caustics.
- Duplex/Super Duplex: F51, F53, F55 for high-strength, chloride-resistant applications (e.g., seawater injection, sour gas).
- Alloy Steels: F11, F22, F91 for high-temperature steam services up to 600°C+.
- Exotic Alloys: Monel, Inconel, Hastelloy, and Titanium for extreme corrosion niches.
- Sour Service Compliance: All materials are available with NACE MR0175/MR0103 certification, including controlled hardness and heat treatment to prevent Sulfide Stress Cracking (SSC) in H2S environments.
Strategic Applications in High-Stakes Industries
The Class 600 Spectacle Blind is deployed where process conditions are severe and safety is paramount:
- High-Pressure Hydrocracking & Hydrotreating: Essential for isolating reactors and separators operating at hydrogen partial pressures exceeding 1,000 psi, where hydrogen embrittlement risks are high.
- Power Generation (HP Steam): Critical for isolating sections of main steam lines and boiler feed pumps operating at 1,200–1,500 psi.
- Gas Processing & LNG: Used in high-pressure natural gas treating units, amine contactors, and LNG liquefaction loops.
- Petrochemical Synthesis: Deployed in ethylene crackers and polymerization reactors where high pressures drive reaction kinetics.
- Offshore Platforms: Standard for high-pressure production manifolds and injection lines where space is limited but pressure ratings are high.
Uncompromising Quality Assurance for High Pressure
At 1,480+ psi, a failure is catastrophic. Shanxi Xinshunda enforces a "Zero Defect" QA protocol for all Class 600 Spectacle Blinds:
- 100% Material Verification: Positive Material Identification (PMI) via XRF for every unit. Full EN 10204 3.1 Mill Test Certificates trace chemistry and mechanical properties to the melt.
- Volumetric NDT:
- Forged Units: 100% Ultrasonic Testing (UT) per ASTM A388 to detect internal laminations or inclusions.
- Cast/Large Units: Radiographic Testing (RT) or UT on critical sections, especially the bridge area and blind center.
- Surface Integrity: 100% Magnetic Particle (MT) and Liquid Penetrant (PT) testing on all machined surfaces, with special focus on the Raised Face serrations and bridge roots.

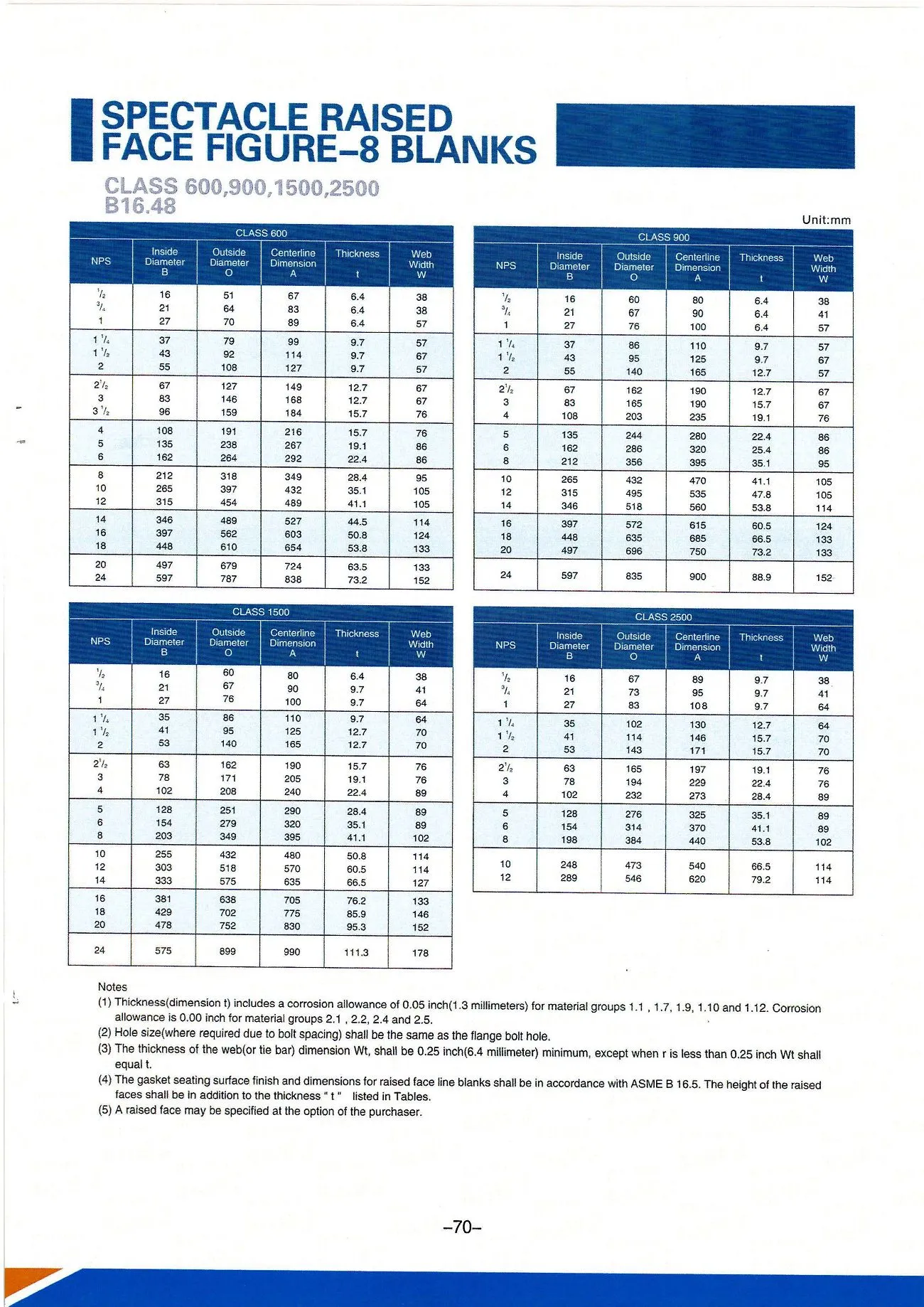

- Dimensional Precision: Laser measurement of thickness, OD, BCD, and bolt hole alignment to ensure strict adherence to ASME B16.48 tables.
- Hardness Testing: Mandatory hardness surveys for sour service units to ensure compliance with NACE limits (typically <22 HRC for carbon steel).
Specialized Handling & Logistics
The weight and bulk of Class 600 Spectacle Blinds present unique logistical challenges:
- Heavy-Lift Packaging: Units are shipped in reinforced steel-skidded crates with integrated lifting lugs. For NPS 18"–24", custom lifting beams are often included.
- Face Protection: Raised faces are protected with thick, bolted steel armor plates to prevent damage to the critical sealing surface during transit.
- Installation Support: We provide detailed torque charts and bolt-up sequences specifically calibrated for Class 600 bolt sizes and materials to ensure safe field installation.
Partner with Shanxi Xinshunda for High-Pressure Confidence
Choosing Shanxi Xinshunda for your ANSI B16.48 Class 600 Spectacle Blind Flanges ensures access to a manufacturer with the heavy industrial capacity and technical expertise to handle high-pressure isolation safely. Whether you require forged carbon steel for a refinery turnaround or super duplex for an offshore injection line, we deliver precision-engineered, code-compliant solutions. With nearly 20 years of experience powering the world's most critical energy infrastructure, our Class 600 Spectacle Blinds offer the reliability and safety your high-stakes projects demand. Contact our high-pressure division today for technical consultations, dimensional data, and competitive quotes.
