Shanxi Xinshunda Flange Manufacturing Co., Ltd. is a trusted manufacturer of ANSI B16.48 Class 150 Spectacle Blind Flanges (also known as Figure-8 Blinds), the industry-standard device for positive isolation in low-pressure piping systems. While ASME B16.5 covers standard flanges, ASME B16.48 is the specific code dedicated to line blinds and spectacle blinds for pipe sizes NPS ½" through NPS 24" and pressure classes 150 through 2500. Our Class 150 Spectacle Blinds provide a reliable, visual, and cost-effective method to isolate sections of a pipeline for maintenance, safety, or process changeovers, ensuring zero leakage when the "blind" side is installed.
Understanding the Spectacle Blind: Design & Function

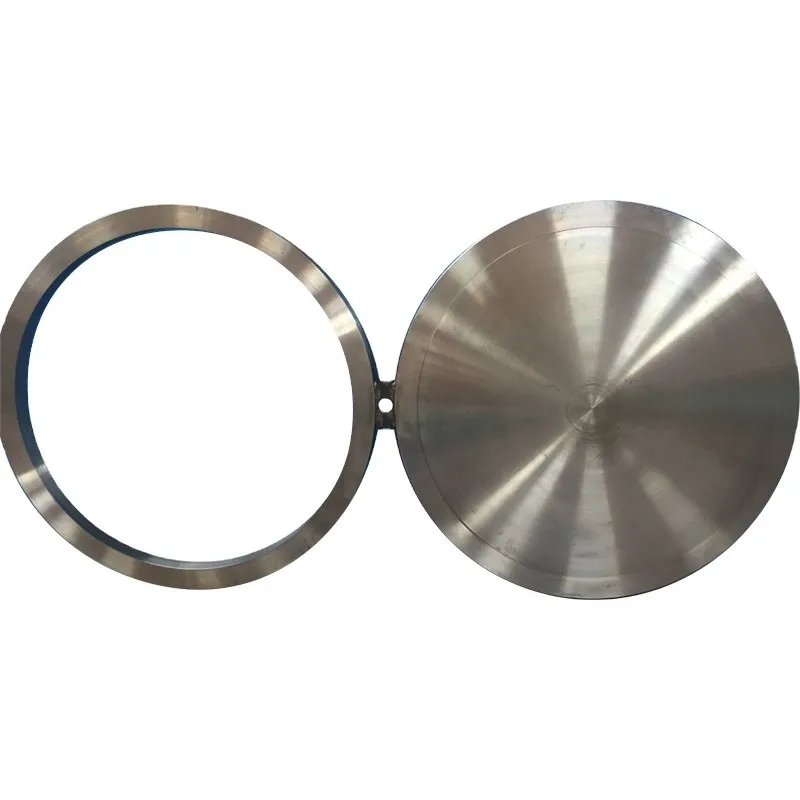

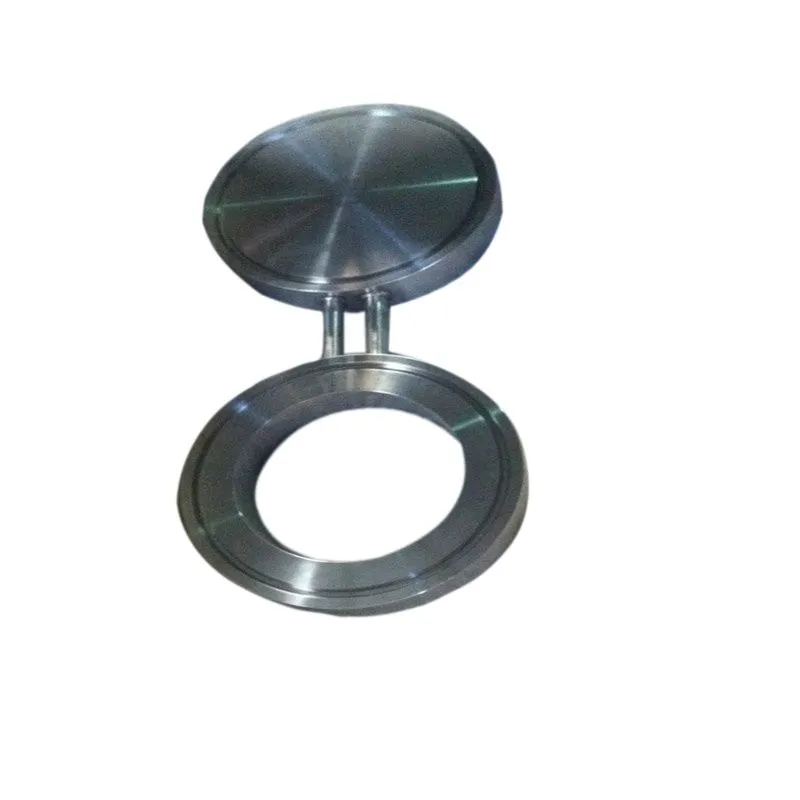

A Spectacle Blind consists of two distinct metal discs connected by a small section of steel (the "bridge"), resembling a pair of glasses:
- The Blind Side: A solid, flat disc that completely blocks the flow of fluid when rotated into the pipeline. This provides positive isolation, physically preventing any media from passing through.
- The Spacer (or Drip) Side: An open ring with an inner diameter matching the pipe bore. When rotated into the line, it allows full, unobstructed flow.
- Visual Indication: The unique shape offers an immediate visual cue to operators and safety inspectors regarding the line status (Open vs. Closed) from a distance, a critical safety feature in complex plants.
- B16.48 Compliance: Unlike custom-cut blinds, our ANSI B16.48 units are manufactured to precise dimensional standards for outer diameter, thickness, bolt hole pattern, and bridge size, ensuring perfect fit-up with standard ASME B16.5 Class 150 flanges.
Key Specifications for Class 150 Service
The Class 150 rating indicates suitability for systems with a maximum working pressure of approximately 285 psi (for Carbon Steel at ambient temperature). Despite being the lowest pressure class, proper manufacturing is vital for leak-free performance:
- Dimensional Accuracy: We strictly adhere to ASME B16.48 tables for Outside Diameter (OD), Bolt Circle Diameter (BCD), number of bolt holes, and blind thickness. This ensures the blind fits between standard flanges without misalignment or excessive gap issues.
- Thickness Calculation: The thickness of the blind side is calculated based on the formula in ASME B31.3/B16.48, considering the design pressure, temperature, and material allowable stress. For Class 150, the thickness is moderate but must be sufficient to prevent bowing under pressure.
- Bridge Integrity: The connecting bridge is engineered to withstand the shear forces during rotation and installation, ensuring the two discs remain securely linked throughout the lifecycle of the component.
- Facing Options:
- Flat Face (FF): Standard for Class 150 Cast Iron and often specified for Carbon Steel to prevent flange distortion when bolting against brittle materials.
- Raised Face (RF): Common for steel-to-steel connections, featuring a 1/16" raised surface for gasket seating. We can supply either based on your pipeline specification.
Material Versatility for Diverse Applications
Shanxi Xinshunda manufactures ANSI B16.48 Class 150 Spectacle Blinds in a wide range of materials to suit various process environments:
- Carbon Steel: ASTM A105 (Forged) and A216 WCB (Cast). The most common choice for general oil, gas, water, and steam services.
- Stainless Steel: ASTM A182 F304/L, F316/L, F321, F347. Ideal for corrosive chemical processing, food & beverage, and marine applications.
- Duplex/Super Duplex: F51, F53, F55. Used in seawater cooling systems and sour gas applications requiring high strength and chloride resistance.
- Alloy Steels: F11, F22. For elevated temperature services in power generation.
- Special Alloys: Monel, Inconel, Hastelloy, and Titanium for extreme corrosion or high-temperature niches.
- Sour Service: All materials can be supplied with NACE MR0175/MR0103 compliance for H2S environments.
Strategic Applications in Process Safety
Class 150 Spectacle Blinds are ubiquitous in industries where safe isolation is mandated by law and best practices:
- Refinery Turnarounds: Essential for isolating units (distillation columns, reactors) during maintenance to protect workers from hazardous hydrocarbons.
- Chemical Processing: Used to safely isolate sections of acid or caustic lines during pump or valve repairs.
- Water & Wastewater Treatment: Installed to isolate pumps, filters, or treatment tanks without draining the entire system.
- HVAC & Chilled Water Systems: Common in large commercial buildings for isolating chillers or cooling towers for seasonal maintenance.
- Marine & Offshore: Used on ballast lines, fuel lines, and utility systems where space is limited and visual confirmation of isolation is critical.
Rigorous Quality Assurance
Even at Class 150, the safety implications of a failed blind are significant. Our QA process includes:
- Material Verification: 100% Positive Material Identification (PMI) via XRF analysis to ensure correct alloy composition.
- Dimensional Inspection: Precise measurement of OD, thickness, bolt holes, and bridge dimensions using calipers, micrometers, and CMMs to guarantee ASME B16.48 compliance.
- Surface Finish: Machined sealing surfaces (FF or RF) are checked for smoothness and flatness to ensure optimal gasket compression and leak-tightness.
- Marking & Traceability: Each blind is permanently stamped with Size, Class, Material Grade, Heat Number, and Manufacturer Logo per ASME B16.48 requirements. Full EN 10204 3.1 Mill Test Certificates are provided.
- NDT (Optional): While not always mandatory for Class 150 Carbon Steel, we can perform UT or PT testing upon request for critical services.
Handling & Installation Support
- Weight Management: While Class 150 blinds are lighter than higher classes, larger sizes (NPS 20"-24") can still be heavy. We provide lifting lugs or handling instructions for larger units.
- Gasket Recommendations: We advise on appropriate gasket types (spiral wound, rubber, PTFE) compatible with the blind face and process media.
- Bolting Guidance: Our technical team can provide torque values and bolt-up sequences to ensure even gasket loading and prevent leaks.
Partner with Shanxi Xinshunda for Reliable Isolation Solutions
Choosing Shanxi Xinshunda for your ANSI B16.48 Class 150 Spectacle Blind Flanges ensures you receive precision-engineered safety components that meet global standards. Whether you need a single unit for a quick repair or bulk quantities for a plant turnaround, in Carbon Steel, Stainless, or exotic alloys, we deliver quality and reliability. With nearly 20 years of experience in flange manufacturing, our Class 150 Spectacle Blinds provide the peace of mind that your isolation points are secure, compliant, and ready for service. Contact our sales team today for quotes, dimensional drawings, and rapid delivery options.
