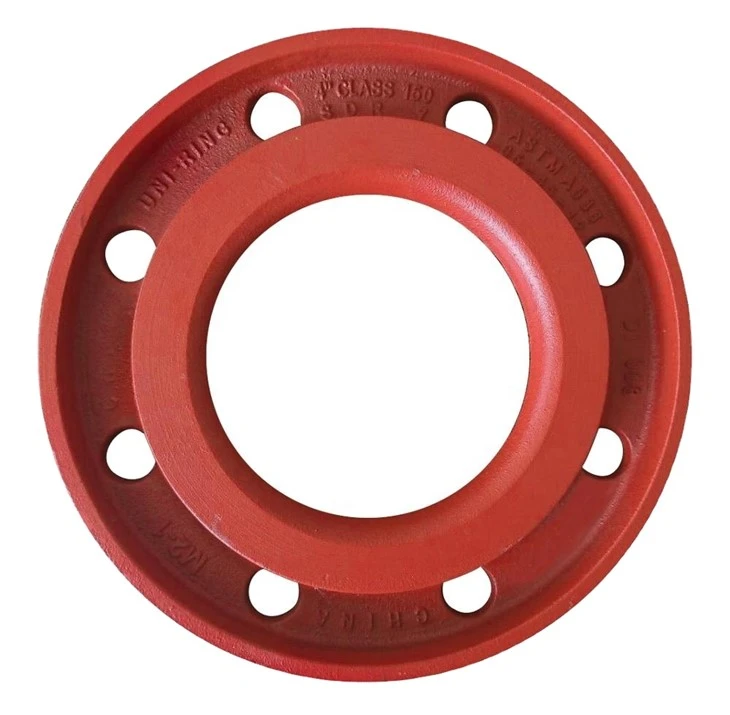

Ductile Iron Backing Ring Flange

1. Product Description

Manufactured by SHANXI XINSHUNDA FLANGE MANUFACTURING CO.,LTD, Epoxy Coated A105 Carbon Steel Backing Ring Flange is specially matched for HDPE PE stub-end piping system. Produced from forged ASTM A105 carbon steel, treated with normalized heat treatment, full blue fusion bonded epoxy coating for potable water service. This steel backing ring undertakes bolt tightening pressure and protects PE stub-end from crushing or deformation, achieving stable leak-free connection between HDPE plastic pipe and metal pipeline equipment. Full material traceability is guaranteed. Each batch is supplied with EN10204-3.1B Material Test Certificate, including heat number, heat lot number, chemical composition and mechanical test data. Third-party inspection retest is available upon client request.

2. Product Parameter (Specification)

3. Product Feature and Application

Main Features

Qualified ASTM A105 Forged Raw Material Normalized treatment ensures stable mechanical property: Yield strength ≥250MPa, Tensile strength ≥485MPa, Hardness 137-187HB, suitable for long-term pipeline pressure bearing.

Drinking-water Grade Full-range FBE Epoxy Coating Inner and outer blue epoxy anti-corrosion layer, resist soil and water medium corrosion, meet municipal potable water project requirements.

Protective Support for PE Stub-end Transfer bolt pre-tightening force through steel backing ring, avoid plastic stub-end being crushed, maintain reliable sealing performance of HDPE pipeline connection.

Complete Traceability System Each product marked with heat No. and heat-treatment No. We provide original steel mill sheet, in-house heat-treatment record, hardness test record, and support third-party laboratory retest.

Flexible Customization Support non-standard dimension, special drilling pattern, customized coating thickness, OEM logo marking according to customer drawings.

Application Scenarios

✅ Municipal Potable Water Supply Network

✅ HDPE pipe supporting project with PE stub-end

✅ Water treatment plant & sewage pipeline system

✅ Buried urban water pipeline, fire-fighting piping

✅ Industrial circulating water system

4. Production Details

All A105 backing ring flanges adopt hot forging process. After forging, workpieces go through normalizing in car-bottom furnace at 900℃, hold for 4 hours then air-cooling to get qualified microstructure and mechanical performance.

Raw material incoming inspection: direct-reading spectral chemical analysis

Post-forging: heat-treatment execution & hardness spot check

CNC machining: flange face processing, bolt hole drilling

Surface preparation: sand blasting reach Sa2.5 grade

Epoxy powder spraying, install plastic plugs for bolt holes to avoid coating blockage.

Notice: Please remove plastic protective plugs before field installation.

5. Product Production Display

SHANXI XINSHUNDA FLANGE MANUFACTURING CO.,LTD is located in Dingxiang County, Shanxi Province, well-known for flange forging industry. We own complete production chains: forging workshop, car-bottom heat-treatment furnace, CNC machining workshop, epoxy coating workshop and independent physical-chemical testing lab. Every production batch implements raw-material inspection, hardness test, dimension inspection. Tensile test, impact test and spectral analysis can be done in-house or finished by authorized third-party testing institute.

6. Product Transport & Package

Inner protection: Anti-rust paper and plastic film for single piece; keep bolt-hole plastic plugs intact.

Outer package: Fumigation-free plywood wooden case / heavy-duty steel pallet for bulk orders.

Marking: Heat No., size, material grade, customer OEM logo can be marked on flange body and outer package.

Shipment: FCL or LCL container loading. Products are firmly fixed to prevent collision damage during sea and land transportation.

7. After-sales Service & FAQ

Q1: What documents can your company provide? A: As SHANXI XINSHUNDA FLANGE MANUFACTURING CO.,LTD, we provide EN10204-3.1B MTC material test certificate including chemical composition, mechanical test results and heat-treatment records. Third-party retest reports are acceptable.

Q2: What is the function of this backing ring flange? A: It must be assembled with PE stub-end lap joint short end. The steel flange bears bolt compression force, protects plastic stub-end from crushing and ensures tight sealing for HDPE pipeline connection.

Q3: Can you produce non-standard sizes or special coating? A: Yes. Custom dimension, bolt circle, coating thickness and marking are available based on your drawings.

Q4: What is your normal lead time? A: Generally 15-25 working days upon receiving deposit, subject to final order quantity.

Q5: Is blue epoxy coating safe for drinking water? A: Our FBE epoxy coating complies with requirements for potable water municipal supply projects.

SHANXI XINSHUNDA FLANGE MANUFACTURING CO.,LTD provides one-stop service including drawing confirmation, production progress tracking, inspection, packaging and global shipping. Please contact our engineering team for any technical questions.
