Shanxi Xinshunda Flange Manufacturing Co., Ltd. presents the ANSI B16.5 Class 2500 flange, the highest pressure rating defined within the ASME B16.5 standard for pipe sizes up to 24 inches. Engineered for the most extreme industrial conditions on Earth, the ANSI B16.5 Class 2500 flange is not merely a connector; it is a critical safety barrier designed to contain ultra-high pressures where failure is absolutely unacceptable. With nearly two decades of specialized heavy forging experience, we deliver these massive, precision-engineered components to the global energy, petrochemical, and power sectors, ensuring operational integrity in the world's most demanding environments.
Elite Metallurgy and Heavy-Duty Forging Technology

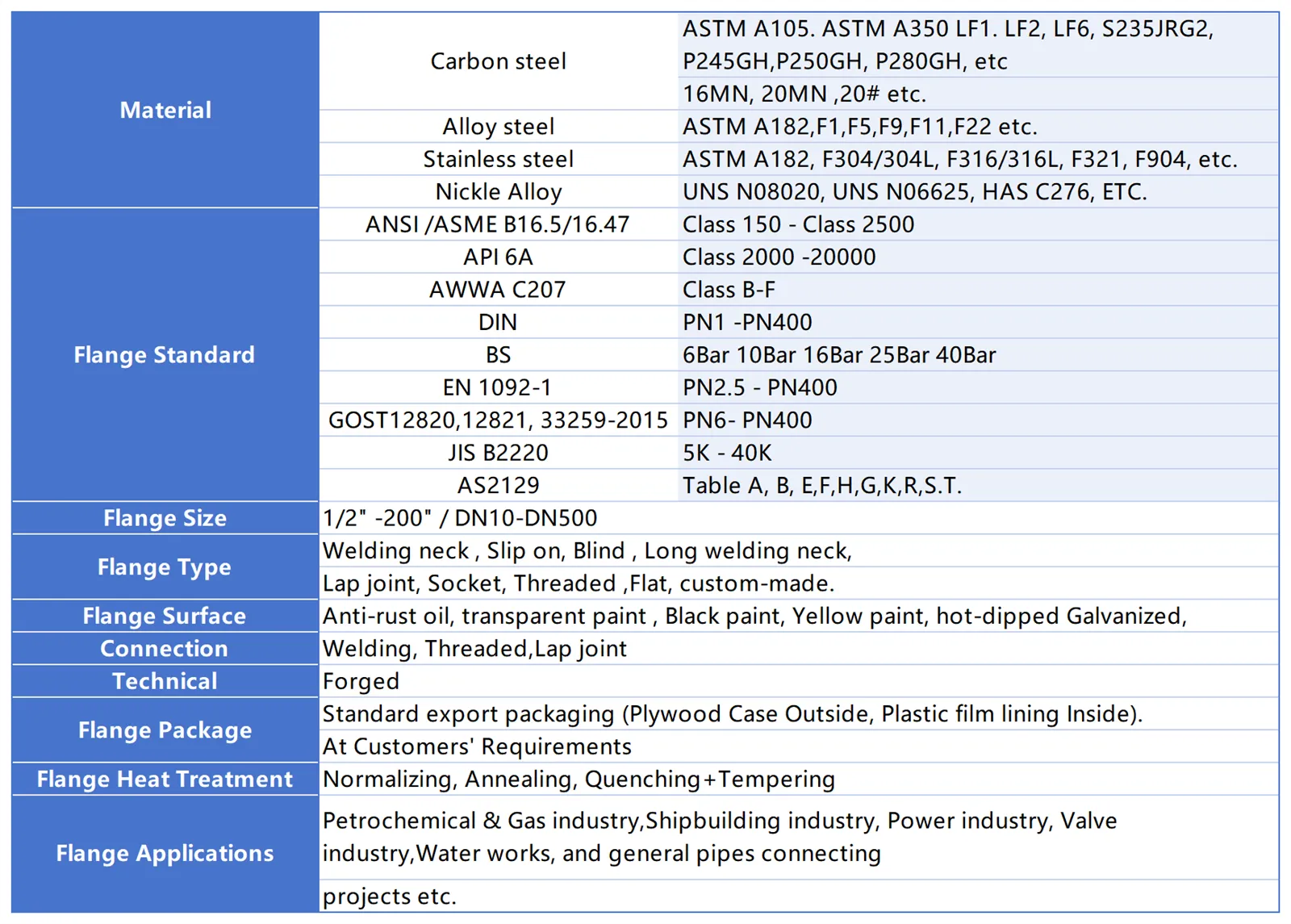

The production of an ANSI B16.5 Class 2500 flange represents the apex of metallurgical engineering and manufacturing capability. Due to the immense wall thicknesses and hub dimensions required to withstand pressures often exceeding 3,000 psi (depending on temperature and material), standard casting or light forging methods are insufficient. We exclusively utilize premium vacuum-degassed, electric-arc melted forged billets of Carbon Steel (A105), Stainless Steel (A182 F304/F316/F316L/F321), and high-performance Alloy Steels (F11, F22, F5, F9, F91). Each ANSI B16.5 Class 2500 flange undergoes rigorous multi-stage heat treatment-including normalizing, quenching, and double tempering-to achieve optimal grain refinement, maximizing tensile strength, yield strength, and Charpy V-notch impact toughness. Our state-of-the-art CNC machining centers ensure that every ANSI B16.5 Class 2500 flange meets the tightest dimensional tolerances specified in ASME B16.5, with perfect bolt hole indexing and superior ring joint (RJ) or raised face finishes essential for maintaining a seal under extreme mechanical stress.
Critical Applications in Extreme Environments
The ANSI B16.5 Class 2500 flange is reserved for applications where no other standard flange class can provide the necessary safety margin. In the upstream oil and gas industry, these flanges are indispensable for deep-water and ultra-deep-water subsea wellheads, Christmas trees, and manifold systems operating at depths greater than 3,000 meters, where external hydrostatic pressure combines with high internal flow pressures. Petrochemical refineries deploy the ANSI B16.5 Class 2500 flange in high-pressure hydrocracking units, ethylene crackers, and ammonia synthesis loops where hydrogen embrittlement and extreme pressures coexist. In the power generation sector, they are critical for ultra-supercritical (USC) steam cycles, securing main steam lines and hot reheat lines operating at temperatures above 600°C and pressures nearing 300 bar. Furthermore, they are vital in high-pressure water injection systems for enhanced oil recovery (EOR) and specialized chemical reactors handling aggressive, high-energy media. The ANSI B16.5 Class 2500 flange offers engineers the ultimate solution for designs requiring maximum containment reliability.
Uncompromising Quality Assurance and Validation Protocols
Uncompromising Quality Assurance and Validation Protocols
Manufacturing a safe ANSI B16.5 Class 2500 flange demands a quality assurance regime that far exceeds standard industry norms. At Shanxi Xinshunda, production follows strict adherence to ISO 9001, ASME Section VIII Div. 2, and NACE MR0175/MR0103 standards for sour service. The process initiates with raw material verification via EN 10204 3.2 Mill Test Certificates, including full chemical analysis and mechanical property testing. Given the massive cross-sections involved, every ANSI B16.5 Class 2500 flange undergoes comprehensive Ultrasonic Testing (UT) in accordance with ASTM A388/A577 to detect internal laminations or inclusions. Surface integrity is verified using Magnetic Particle Inspection (MPI) and Liquid Penetrant Testing (PT). Dimensional accuracy is validated using large-scale Coordinate Measuring Machines (CMM). Crucially, each unit is subjected to hydrostatic shell testing at 1.5 times its rated pressure to prove structural integrity before shipment. Full traceability from the steel melt to the final machined product ensures that every ANSI B16.5 Class 2500 flange is compliant with the most stringent international safety codes.
Specialized Heavy-Lift Packaging and Global Logistics
The substantial weight and critical nature of an ANSI B16.5 Class 2500 flange require specialized logistics solutions. We implement heavy-duty export packaging protocols, including the application of long-term vapor corrosion inhibitors (VCI), heavy-gauge moisture barriers, and custom-built, reinforced wooden crates with internal steel bracing to prevent any movement during transit. Lifting points are clearly marked, and load distribution is engineered to prevent deformation. Detailed labeling includes heat numbers, size, class rating, material grade, NACE compliance status, and project-specific identifiers. Our experienced logistics team manages the complex export of your ANSI B16.5 Class 2500 flange orders to over 70 countries, coordinating heavy-lift shipping and providing complete documentation packages, including commercial invoices, packing lists, certificates of origin, and full NDT reports.
Partner with Shanxi Xinshunda for Ultra-High Pressure Excellence
Choosing Shanxi Xinshunda for your ANSI B16.5 Class 2500 flange requirements means partnering with a manufacturer capable of delivering the highest level of engineering excellence. We offer direct factory pricing, custom forging capabilities for non-standard dimensions or special alloy compositions, and expert technical consultation on pressure-temperature derating and material selection for specific service environments. Whether for new greenfield mega-projects, subsea infrastructure, or the critical maintenance of existing ultra-high-pressure assets, our ANSI B16.5 Class 2500 flange products deliver the durability, safety, and performance your operations demand. Contact our specialized sales team today for detailed technical data sheets, catalogs, and personalized quotations.
