Shanxi Xinshunda Flange Manufacturing Co., Ltd. proudly presents its specialized ANSI B16.5 Class 400 flange series, designed to meet the rigorous demands of high-pressure industrial piping systems. While less common than Class 150 or 300 variants, the ANSI B16.5 Class 400 flange occupies a critical niche for applications requiring pressure ratings between standard classes, offering enhanced safety margins for specific operational conditions. With nearly two decades of forging excellence, we deliver these precision components to global clients in the oil, gas, and chemical sectors who require reliable performance under extreme stress.
Heavy-Duty ANSI B16.5 Class 400 Flange Solutions.Engineered ANSI B16.5 Class 400 Flange for Extreme Pressure.
Advanced Metallurgy and Precision Manufacturing

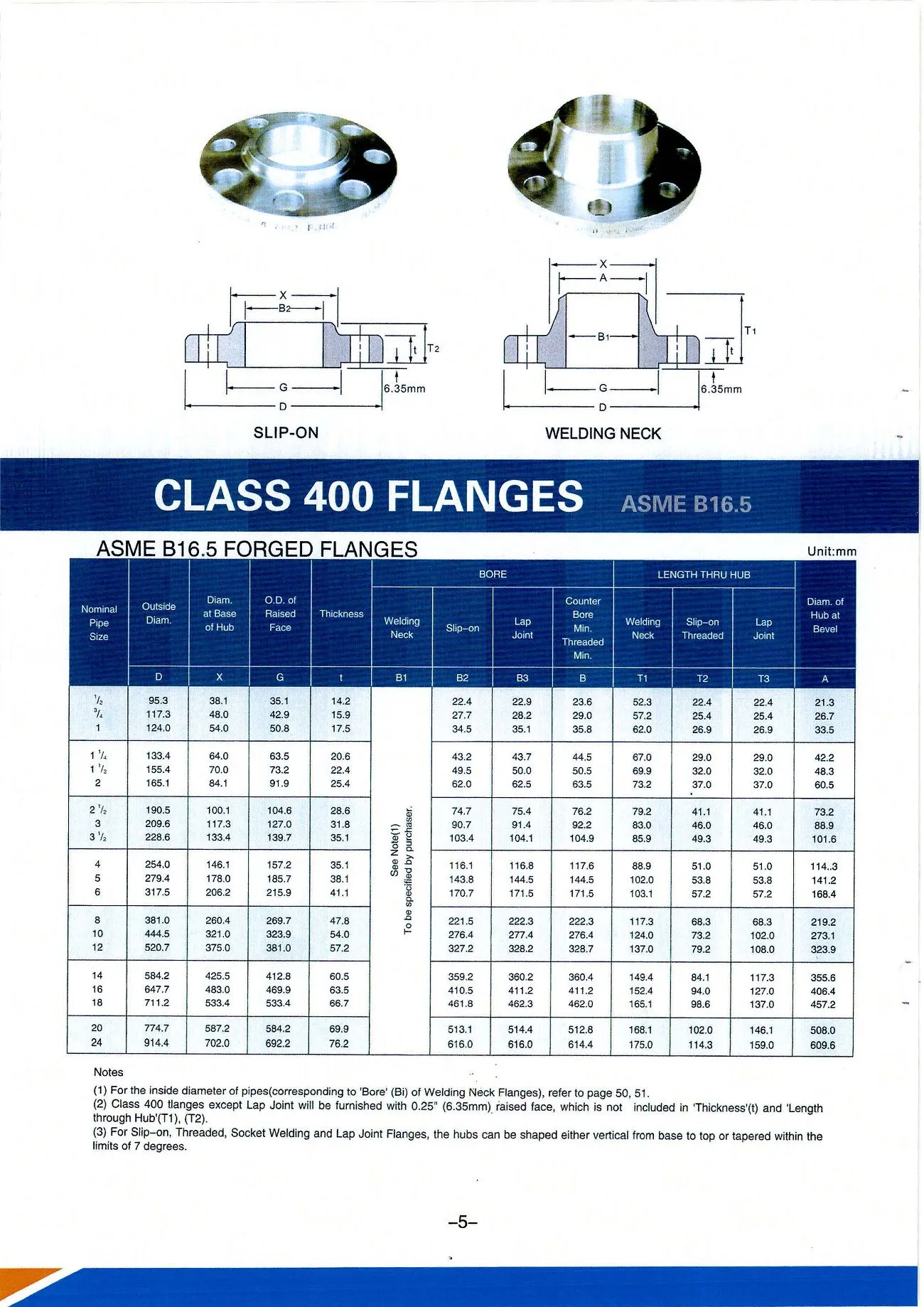

The structural integrity of our ANSI B16.5 Class 400 flange is achieved through superior material selection and advanced forging techniques. Manufactured from high-grade Carbon Steel (A105), Stainless Steel (F304/F316), and Alloy Steels (F11/F22), each unit is engineered to withstand significantly higher internal pressures than lower-class counterparts. The production process involves precise heat treatment cycles and CNC machining to ensure that every ANSI B16.5 Class 400 flange meets exact dimensional tolerances specified in the ASME B16.5 standard. These flanges are capable of operating in temperature ranges from -20°F to over 800°F, depending on the alloy used, making them suitable for both cryogenic and high-thermal environments where pressure stability is non-negotiable.
Critical Applications in High-Stakes Industries
The ANSI B16.5 Class 400 flange is specifically deployed in scenarios where standard pressure classes do not offer the optimal safety factor or design flexibility. In the upstream oil and gas industry, these components secure high-pressure wellhead connections and gathering lines. Petrochemical refineries utilize the ANSI B16.5 Class 400 flange for reactor feed lines and high-pressure separator units where leak prevention is paramount. Power generation plants integrate them into high-pressure boiler feedwater systems and steam extraction lines. Furthermore, they are essential in hydraulic fracturing operations and high-pressure water injection systems for enhanced oil recovery. The unique pressure rating of the ANSI B16.5 Class 400 flange provides engineers with a tailored solution for complex piping designs that demand intermediate pressure capabilities.
Uncompromising Quality Assurance Standards
Producing a reliable ANSI B16.5 Class 400 flange requires a stringent quality control regime. At Shanxi Xinshunda, every batch undergoes comprehensive verification starting with raw material certification (EN 10204 3.1). Our ISO 9001-certified facility employs coordinate measuring machines (CMM) to verify bolt hole alignment, face flatness, and hub dimensions of each ANSI B16.5 Class 400 flange. Critical to our process is hydrostatic testing performed at pressures exceeding the rated limits to guarantee zero leakage potential. Non-destructive testing (NDT) methods, including ultrasonic and magnetic particle inspection, are applied to detect internal or surface flaws. Each ANSI B16.5 Class 400 flange is fully traceable, ensuring compliance with international safety codes and providing peace of mind for project managers.
Secure Packaging and Worldwide Logistics
We understand that the journey of an ANSI B16.5 Class 400 flange from our factory to your site involves rigorous handling. Therefore, we implement robust packaging protocols including anti-corrosive coatings, moisture-resistant wrapping, and reinforcement in heavy-duty wooden crates. Clear labeling identifies the heat number, size, class, and material grade for seamless inventory management. Our experienced logistics team ensures the timely export of your ANSI B16.5 Class 400 flange orders to over 70 countries, accompanied by complete documentation sets including test reports and certificates of origin.
Partner with Shanxi Xinshunda for Specialized Flanges
Choosing Shanxi Xinshunda for your ANSI B16.5 Class 400 flange needs means partnering with a manufacturer dedicated to solving complex engineering challenges. We offer competitive direct pricing, custom machining services, and expert technical consultation to select the right materials for your specific pressure-temperature profile. Whether for new construction or maintenance of existing high-pressure systems, our ANSI B16.5 Class 400 flange products deliver the durability and safety your operations demand. Contact our sales team today for detailed catalogs and personalized quotations.
