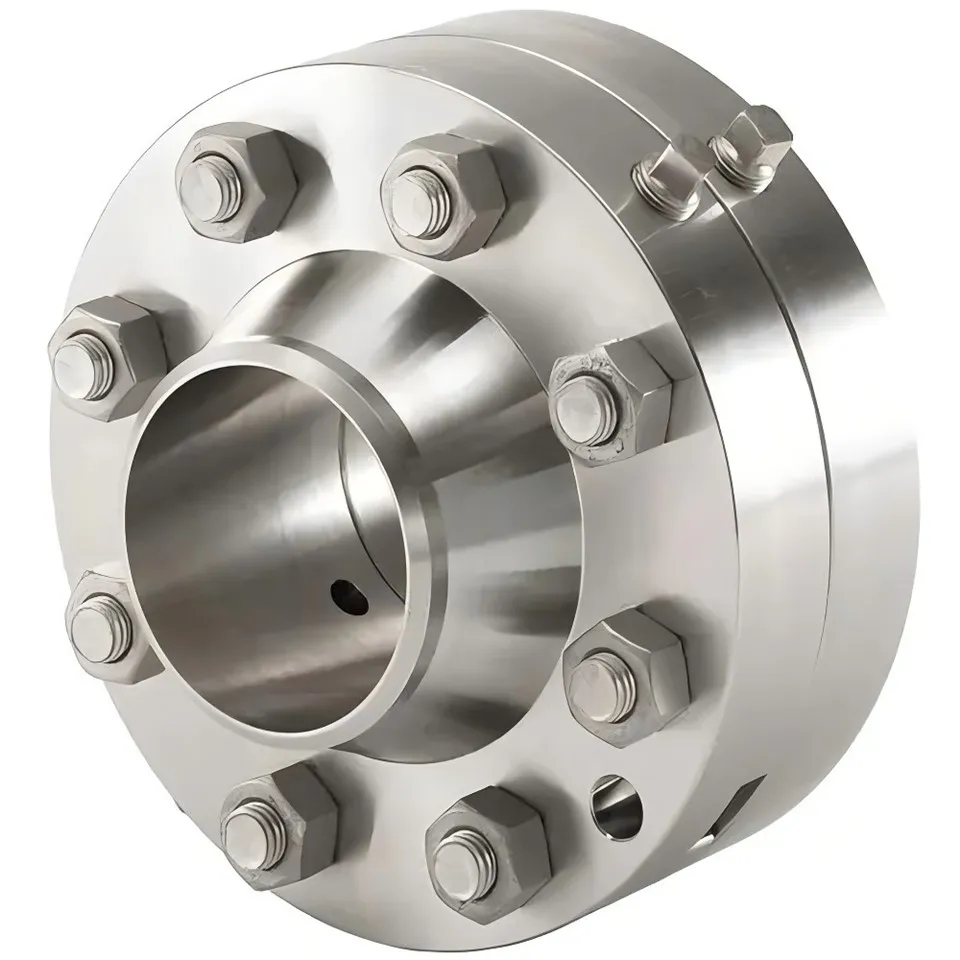

Shanxi Xinshunda Flange Manufacturing Co., Ltd. provides specialized Class 400 Orifice Flanges, a unique and critical component designed for flow measurement applications that exceed the pressure limits of Class 300 but do not yet require the heavy-wall construction of Class 600. While less common than other ratings, the Class 400 Orifice Flange is an essential engineering solution for specific mid-stream oil & gas lines, high-pressure chemical processes, and power plant auxiliary systems operating in the 600–900 psi range. With nearly 20 years of precision forging experience, we manufacture these components to exacting ASME B16.36 and API MPMS standards, ensuring accurate differential pressure measurement where safety margins are tight.

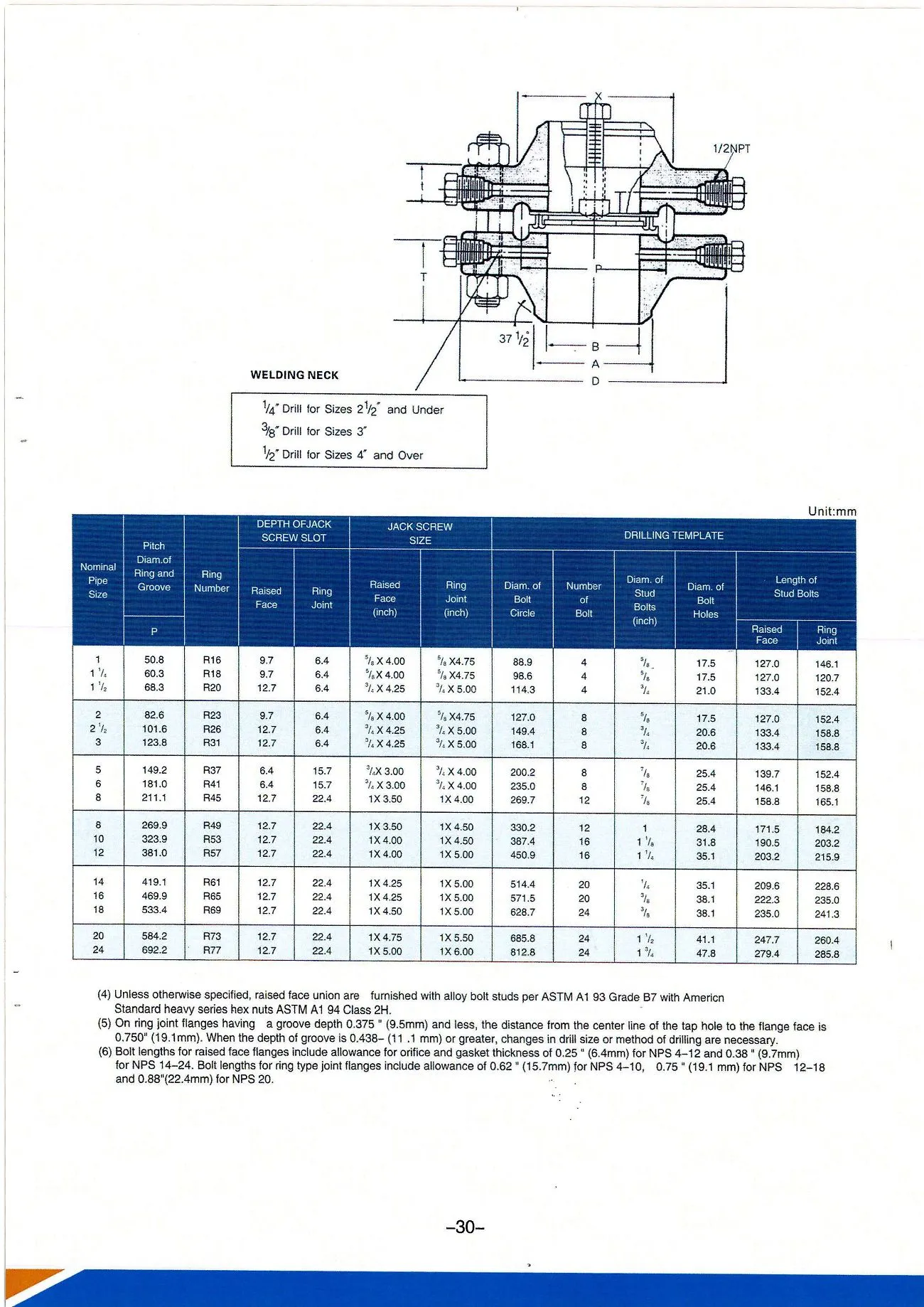

Unique Engineering and Design Specifications
The Class 400 Orifice Flange represents a distinct step up in pressure containment capability compared to Class 300, requiring enhanced hub thickness and bolt circle dimensions while maintaining the precision necessary for flow metering.
- Pressure-Temperature Rating: For Carbon Steel (A105), the Class 400 Orifice Flange is rated for approximately 990 psi at ambient temperature, dropping to roughly 600-700 psi at elevated temperatures (e.g., 400°F/200°C). This makes it the ideal choice for systems operating consistently above the Class 300 limit (~740 psi cold) without the cost penalty of Class 600.
- Precision Orifice Taps: Like lower classes, our Class 400 Orifice Flange sets feature precisely located taps (Flange Taps, D, or D/2 configurations) drilled to strict tolerances. The increased wall thickness of the Class 400 hub requires specialized deep-hole drilling techniques to ensure tap perpendicularity and burr-free internal bores, which is critical for accurate pressure signal transmission.
- Jack Screw Integration: Given the higher bolt loads required to seal a Class 400 Orifice Flange, our design incorporates robust, hardened jack screws. These allow for the safe, controlled separation of the flange faces against significant gasket compression forces, facilitating easy orifice plate inspection and replacement without damaging the sealing surfaces.
- Facing Options: While Raised Face (RF) is standard, the Class 400 Orifice Flange is frequently supplied with Ring Type Joint (RTJ) grooves (typically R-series) for hazardous, toxic, or high-temperature services where metal-to-metal sealing is mandated by safety codes.
We manufacture these flanges in Carbon Steel (A105), Stainless Steel (A182 F304/F316/L), Duplex/Super Duplex, and Alloy Steels (F11, F22), ensuring material compatibility with aggressive media at intermediate pressures.
Strategic Applications in Niche High-Pressure Zones
The Class 400 Orifice Flange is deployed in specific industrial niches where process conditions fall into the "gap" between standard pressure classes:
- Natural Gas Transmission: Used in mainline metering stations and compressor discharge lines where operating pressures hover around 800–900 psi, making Class 300 insufficient and Class 600 over-engineered.
- High-Pressure Steam Systems: Essential in power generation for extracting steam samples, measuring feedwater flow in sub-critical boilers, and monitoring turbine bypass lines operating at intermediate pressures.
- Petrochemical & Refining: Critical for high-pressure hydrogen lines, ammonia transfer loops, and catalytic reformer units where pressures exceed 750 psi.
- Offshore Production: Utilized on platform manifolds and injection lines where weight savings are crucial, and the specific pressure profile allows for the lighter Class 400 Orifice Flange instead of the heavier Class 600 alternative.
- Chemical Synthesis: Ideal for polymerization reactors and high-pressure acid alkylation units requiring precise flow control at elevated pressures.
Uncompromising Quality Assurance for Metrological Accuracy
Manufacturing a Class 400 Orifice Flange demands rigorous quality control to ensure that the increased structural mass does not compromise measurement accuracy. Shanxi Xinshunda adheres to ASME B16.36, API MPMS Chapter 14.3, and ISO 5167.
- Advanced Tap Machining: We utilize multi-axis CNC machining centers with in-process probing to drill and tap orifice holes in the thicker Class 400 hubs, guaranteeing perfect alignment and surface finish inside the tap to prevent turbulence or signal damping.
- Dimensional Validation: Every Class 400 Orifice Flange is inspected using Coordinate Measuring Machines (CMM) to verify hub thickness, bore concentricity, and the precise distance between the tap centerline and the flange face.
- Sealing Integrity: The raised faces or RTJ grooves are machined to exact finishes (125-250 µin Ra for RF; specific roughness for RTJ) and checked for flatness to ensure leak-tight performance under high bolt loads.
- Comprehensive Testing: All units undergo hydrostatic shell testing at 1.5 times the rated pressure, Positive Material Identification (PMI), and Non-Destructive Testing (UT, MT, PT) as per project specifications. Full traceability is provided via EN 10204 3.1/3.2 Mill Test Certificates.
Specialized Packaging and Global Logistics
Due to the specialized nature and increased weight of the Class 400 Orifice Flange, we implement tailored packaging solutions. Flange pairs are shipped pre-assembled with protective spacers to maintain face alignment and protect the precision-machined bores and taps. Threads are capped, and units are treated with long-term corrosion inhibitors, wrapped in VCI paper, and secured in reinforced, fumigated wooden crates designed for heavy-lift handling. We provide complete documentation, including dimensional reports, tap location certificates, and material traceability records, ensuring seamless integration into your global projects.
Partner with Shanxi Xinshunda for Specialized Pressure Solutions
Choosing Shanxi Xinshunda for your Class 400 Orifice Flange needs ensures access to a manufacturer capable of handling non-standard and intermediate pressure ratings with the same precision as our standard lines. We offer custom material selections, NACE MR0175 compliance for sour service, and expert technical consultation to optimize your metering skid design. Whether for a greenfield refinery expansion or a brownfield upgrade, our Class 400 Orifice Flanges deliver the reliability, accuracy, and safety your operations demand. Contact our specialized sales team today for detailed technical data, catalogs, and competitive quotations.
